Discharge is done through a 1:1 pressure ratio pneumatic piston pump attached to the back of the unit reservoir and 1,5 m hose with a hydraulic type coupler.

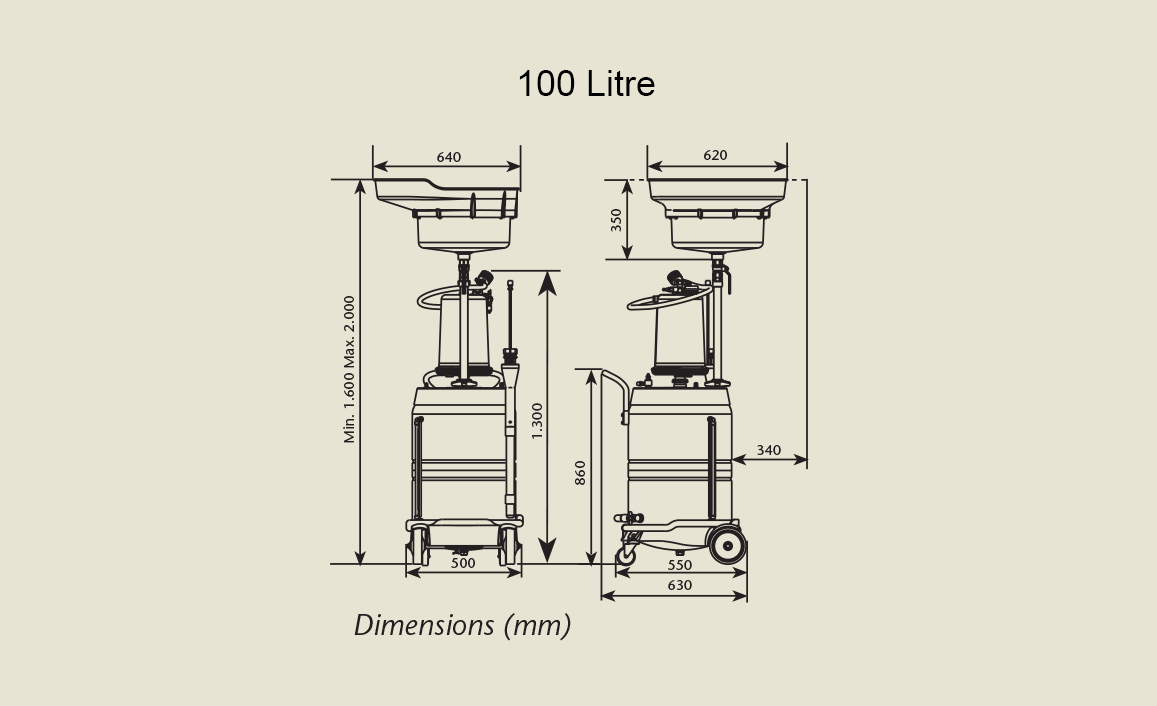

100 Litres Features
- 100 litres (26 gallons) capacity steel reservoir, with side level gauge.
- Tray for tools, washers, plugs, etc. on top of the reservoir.
- One piece molded spoiler for securing the discharge hose in pressure discharge models.
- Two reinforced casters and two reinforced fixed wheels.
- Steel tank with epoxy powder coating.
- Models for gravity collection include a telescopic collection bowl, with an oversized 360º positionable composite extension for wider reach, and an anti splash grid that can hold used filters for draining.

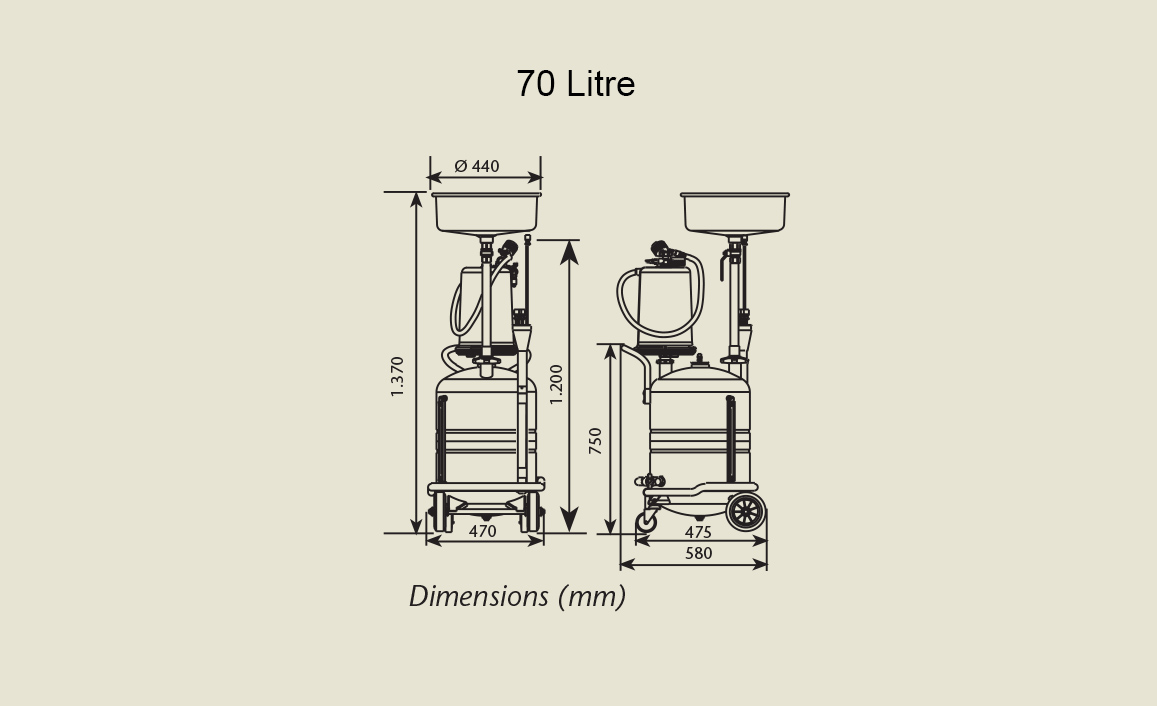

70 Litres Features
- 70 litres (17 gallons) capacity steel reservoir, with side level gauge.
- Two reinforced casters and two reinforced fixed wheels
- Steel tank with epoxy powder coating.
Available Models & Accessories
| PART No. | DESCRIPTION |

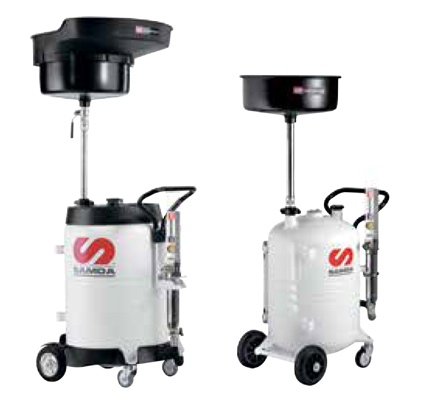

| 372 200 | 100 litres gravity waste oil drainer. Pump discharge |
| 373 200 | 70 litres gravity waste oil drainer. Pump discharge |
Technical Graphs
