Units include a 10 litres transparent chamber that can be used as a vacuum reservoir and allows an immediate inspection of the extracted waste oil. They can be used remotely once vacuum is created inside the steel reservoir. Discharge through a 1,5 m discharge hose pressurizing the unit. Includes safety valve to avoid over pressurization.

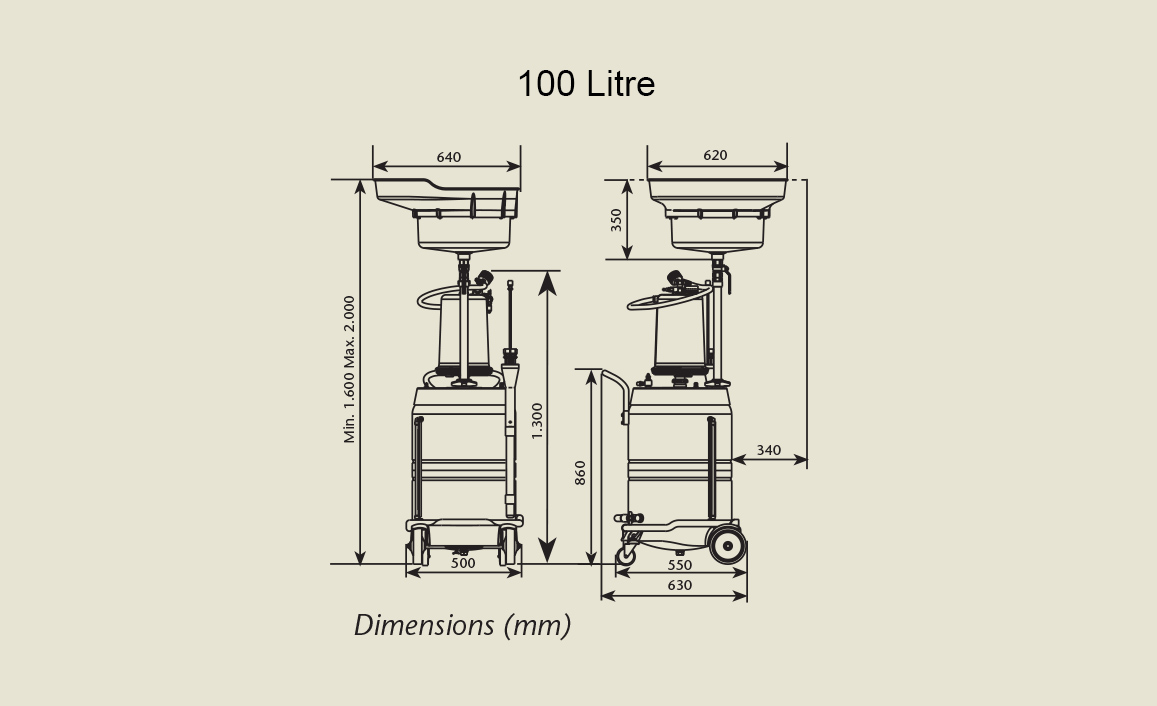

100 Litres Features
- 100 litres (26 gallons) capacity steel reservoir, with side level gauge.
- Tray for tools, washers, plugs, etc. on top of the reservoir.
- One piece molded spoiler for securing the discharge hose in pressure discharge models.
- Two reinforced casters and two reinforced fixed wheels.
- Steel tank with epoxy powder coating.
- Models for gravity collection include a telescopic collection bowl, with an oversized 360º positionable composite extension for wider reach, and an anti splash grid that can hold used filters for draining.

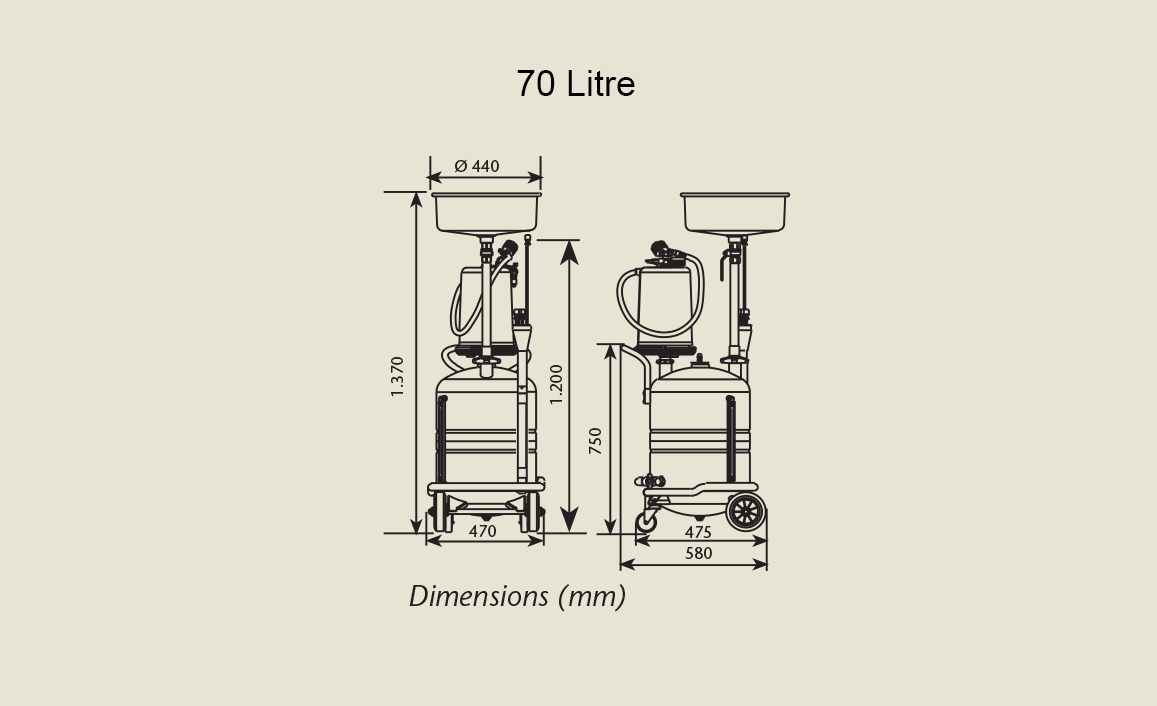

70 Litres Features
- 70 litres (17 gallons) capacity steel reservoir, with side level gauge.
- Two reinforced casters and two reinforced fixed wheels
- Steel tank with epoxy powder coating.
Available Models & Accessories
| PART No. | DESCRIPTION |

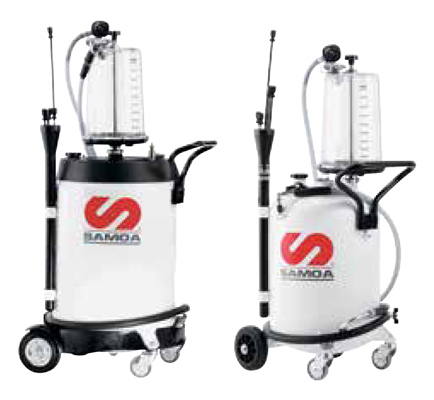

| 372 100 | 100 litres waste oil suction collection unit with transparent chamber |
| 373 100 | 70 litres waste oil suction collection unit with transparent chamber |
Technical Graphs
