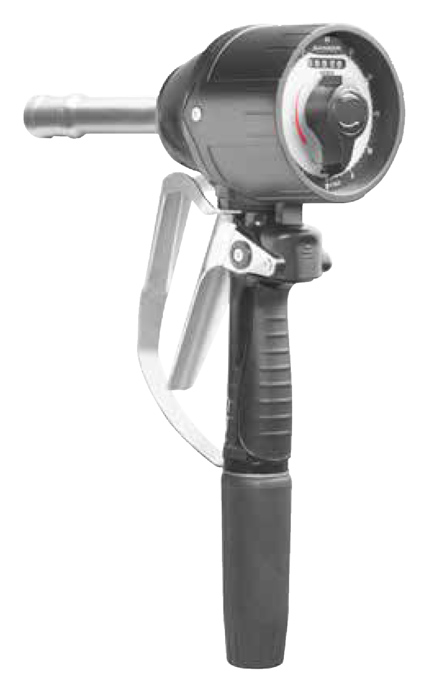

SAMOA mechanical preset metered control valves allow automatic filling of large crankcases, engines and other lubricant reservoirs. For automatic operation, set the dial pointer to the quantity needed and actuate the trigger for automatic latching. The valve will deliver exactly the volume required and then shut off.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Gear Oil.
- Hydraulic oil and fluids.
- ATF.
MARKETS SERVED
- Truck dealerships.
- Fleet service.
- Mining and construction.
- Lube trucks.
- Railroad and Mass Transit Vehicles.
DURABILITY AND PERFORMANCE
- Extensively and rigorously field tested. Reliable performance.
- No calibration required. High accuracy within a large viscosity range.
- One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
- The reset mechanism incorporates a safety clutch for preserving the preset mechanism in case the knob is turned in the wrong direction.
- High wear and stress resistant shut off mechanism.
- Simple and easy to read dial includes 5-digit totalizer.
- Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
- PA40 Control valve is flange coupled to eliminate the use of adaptors and eliminate leaks.
Available Models & Accessories
| METER PART No. | OUTLET NOZZLE TYPE | OUTLET PART No. |
| METRIC METERS. 0 - 60 litres dial, totalizer in litres | ||
| 365 811 | Rigid outlet with semiautomatic non-drip tip | 369 244 |
| QUARTS/GALLONS METERS. 0 - 60 quarts dial, totalizer in gallons | ||
| 365 812 | Rigid outlet with semiautomatic non-drip tip | 369 244 |
| QUARTS/GALLONS METERS. 0 - 60 gallons dial, totalizer in gallons | ||
| 365 813 | Rigid outlet with semiautomatic non-drip tip | 369 244 |
Technical Data
| Maximum flow rate | 30 l/min (8 gal/min) |
| Accuracy | +/- 0,65 % |
| Maximum working pressure | 100 bar (1,450 psi) |
| Operating temperature range | -10 ºC to 60 ºC (14 to 140 ºF) |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted parts | Aluminium / Zinc alloy / Stainless steel / NBR / Brass / Steel / TPU / Polyamide |
| Fluid compatibility | Synthetic and mineral oils, ATF |
| Weight | 2 kg (4.40 lb) |
