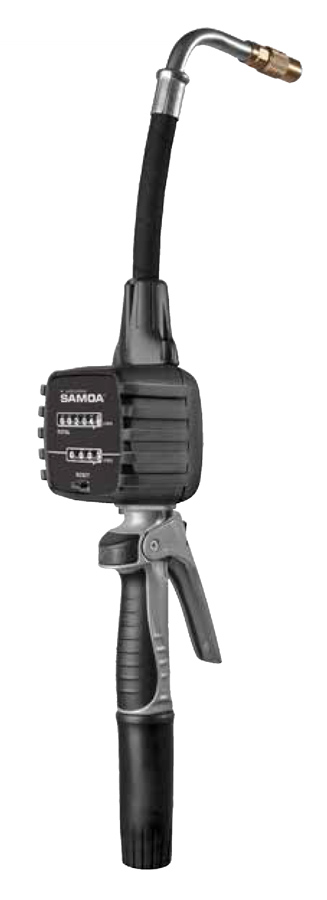

SAMOA mechanical metered control valves are used at the end of hose assembly for measured dispensing of lubricants and antifreeze solutions in tough, intensive use applications.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Gear Oil.
- Hydraulic oil and fluids.
- ATF.
- Antifreeze solutions.
MARKETS SERVED
- Car and truck dealerships.
- Fleet service.
- Mining and construction.
- Lube trucks.
- Fast lube and maintenance shops.
DURABILITY AND PERFORMANCE
- Extensively and rigorously field tested. Reliable performance.
- High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
- Rough TPE boot surrounds the entire meter for even greater durability.
- Resetable partial reading up to 999,9 l and non- resetable 6 digit totalizer.
- Meters are factory calibrated for maximum accuracy.

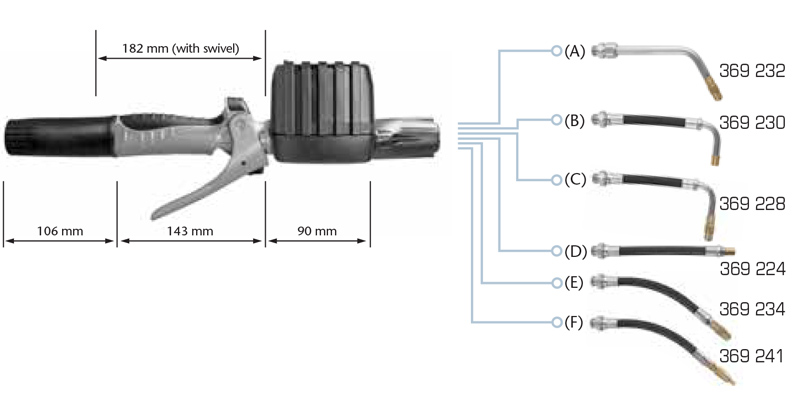

Available Models & Accessories
| METER PART No. | OUTLET NOZZLE TYPE | OUTLET PART No. | |
| 365 861 | Hose end meter with no outlet | - | |
| 365 866 | 60º rigid with quarter turn non-drip tip | 369 232 | (A) |
| 365 865 | Flexible outlet with 90º angled nozzle with automatic non-drip tip | 369 230 | (B) |
| 365 864 | Flexible outlet with 90º angled nozzle with quarter turn non-drip tip | 369 228 | (C) |
| 365 862 | Flexible outlet with automatic non-drip tip | 369 224 | (D) |
| 365 867 | Formable outlet with quarter turn non-drip tip | 369 234 | (E) |
| 365 868 | Formable outlet with quarter turn narrow non-drip tip (Ø 8 mm) | 369 241 | (F) |
Non-drip tips are manufactured in brass.
Technical Data
| Maximum flow rate | 30 l/min (8 gal/min) |
| Accuracy | +/- 1 % |
| Maximum working pressure | 70 bar (1,000 psi) |
| Operating temperature range | -10 ºC to 60 ºC (14 to 140 ºF) |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted parts | Acetal / Aluminium / Stainless steel / NBR / Zinc plated steel / TPU / Polyamide |
| Fluid compatibility | Lubricants, ATF, antifreeze (Glycol) and antifreeze - water solutions |
| Weight | 1,43 kg (3 lb) |
