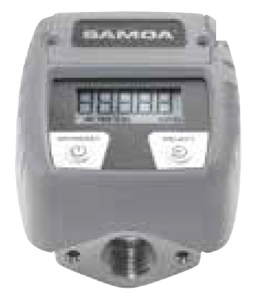

Oval gear meters for use as in-line meters with oil, DEF / AdBlue®, windshield wash solution or antifreeze solution, depending on the meter wetted materials. They can be wall mounted in the fluid line or at the pump outlet. Meters include an electronic register controlled by wetted magnets and powered with two AAA alkaline batteries. It is shock proof and isolated from the fluid handled. Meter display is multi-function, showing the volume dispensed per delivery, and has a permanent and a resettable (trip function) totalizers. The display can be programmed to show delivery in litres, quarts, pints and US gallons. The assembly is enclosed in TPE moulded shroud.
FEATURES
- Extensively and rigorously field tested. Reliable performance.
- High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
- Sealed battery compartment and isolated electronic register for extended life.
- Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
- Rough TPE boot surrounds the entire meter for even greater durability.
- Replaceable AAA batteries.
Technical Data
| Part Number | 366 020 |
| Wetted parts | AISI 316 STAINLESS STEEL, LCP, Viton® |
| Applications | Medium pressure dispense of DEF / AdBlue®, windshield wash and antifreeze solutions |
| Connection threads | 1/2" BSP (F) |
| Flow range | 1 - 50 l/min |
| Pulses per litre | 164 ppl |
| Accuracy | +/- 0.5 % |
| Maximum operating pressure | 100 bar |
| Temperature range (fluid) | -10 ºC to 60 ºC |
| Calibration | Can be calibrated |
| Weight | 0.85 kg |
