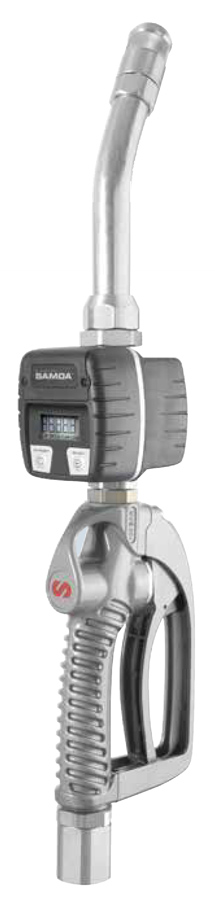

SAMOA control valves are used at the end of hose assembly to dispense lubricants and antifreeze solutions.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Gear Oil.
- Hydraulic oil and fluids.
- ATF.
- Antifreeze solutions.
MARKETS SERVED
- Truck dealerships.
- Railroad and Mass Transit Vehicles.
- Fleet service.
- Mining and construction.
- Lube trucks.
DURABILITY AND PERFORMANCE
- Extensively and rigorously field tested. Reliable performance.
- High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
- Sealed battery compartment and isolated electronic register for extended life.
- Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
- Rough TPE boot surrounds the entire meter for even greater durability.
- Replaceable AAA batteries.

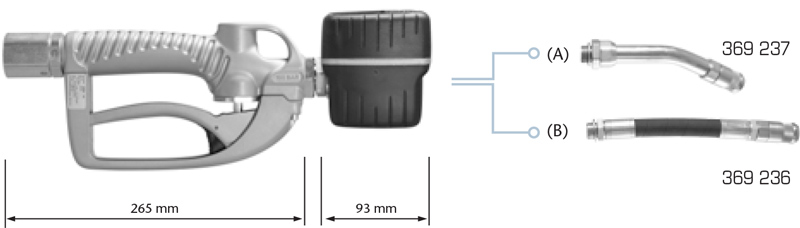

Available Models & Accessories
| PART No. | OUTLET NOZZLE TYPE | Inlet Swivel Thread | |
| 365 655 | 30º rigid with semiautomatic non-drip tip | 3/4" BSP (F) | (A) |
| 365 654 | Flexible outlet with semiautomatic non-drip tip | 3/4" BSP (F) | (B) |
| 365 657 | 30º rigid with semiautomatic non-drip tip | 1" BSP (F) | (C) |
| 365 656 | Flexible outlet with semiautomatic non-drip tip | 1" BSP (F) | (D) |
Technical Data
| Maximum flow rate | 70 l/min (19 gal/min) |
| Accuracy | +/- 0,5 % |
| Maximum working pressure | 100 bar (1,450 psi) |
| Operating temperature range | -10 ºC to 60 ºC (14 to 140 ºF) |
| Fluid inlet | 3/4" BSP (F) or 1" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Wetted parts | Acetal / Aluminium / Stainless steel / Zinc plated steel and brass / NBR |
| Fluid compatibility | Oil |
| Weight | 2,85 kg (6.30 lb) |
