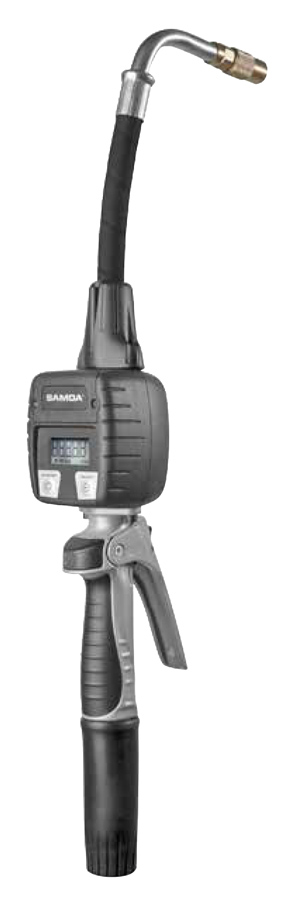

SAMOA control valves are used at the end of hose assembly to dispense lubricants and antifreeze solutions.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Gear Oil.
- Hydraulic oil and fluids.
- ATF.
- Antifreeze solutions.
MARKETS SERVED
- Car and truck dealerships.
- Fast lube and maintenance shops.
- Fleet service.
- Mining and construction.
- Lube trucks.
DURABILITY AND PERFORMANCE
- Extensively and rigorously field tested. Reliable performance.
- High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
- Sealed battery compartment and isolated electronic register for extended life.
- Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
- Rough TPE boot surrounds the entire meter for even greater durability.
- Replaceable AAA batteries.

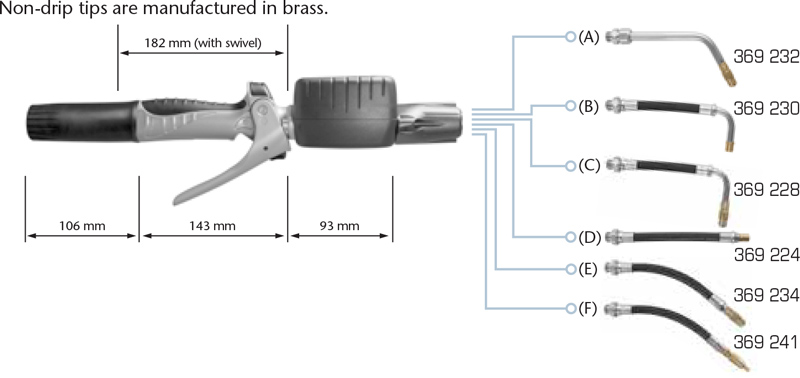

Available Models & Accessories
| PART No. | OUTLET NOZZLE TYPE | OUTLET NOZZLE PART No. | |
| 365 521 | Hose end meter with no outlet | - | |
| 365 536 | 60º rigid outlet and quarter turn non-drip tip | 369 232 | (A) |
| 365 535 | Flexible outlet with 90º tube and automatic non-drip tip | 369 230 | (B) |
| 365 534 | Flexible outlet with 90º tube and quarter turn non-drip tip | 369 228 | (C) |
| 365 532 | Flexible outlet and automatic non-drip tip | 369 224 | (D) |
| 365 537 | Formable outlet and quarter turn non-drip | 369 234 | (E) |
| 365 538 | Formable outlet and quarter turn narrow non-drip (Ø 8 mm) | 369 241 | (F) |
Technical Data
| Maximum flow rate | 30 l/min (8 gal/min) |
| Accuracy | +/- 0,5 % |
| Maximum working pressure | 100 bar (1,450 psi) |
| Operating temperature range | -10 ºC to 60 ºC (14 to 140 ºF) |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted parts | Acetal / Aluminium / Stainless steel / NBR / Zinc plated steel / TPU / Polyamide |
| Fluid compatibility | Lubricants, ATF, antifreeze (Glycol) and antifreeze - water solutions |
| Weight | 1,30 kg (2.86 lb) |
