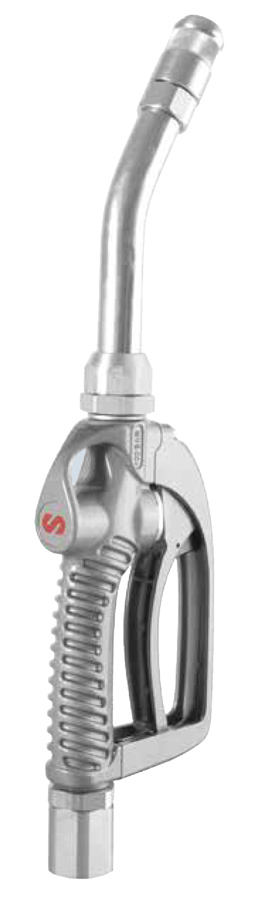

SAMOA control valves are used at the end of hose assembly to dispense lubricants and antifreeze solutions.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Gear Oil.
- Hydraulic oil and fluids.
- ATF.
- Antifreeze solutions.
MARKETS SERVED
- Truck dealerships.
- Fleet service.
- Railroad and mass transit vehicles.
- Mining and construction.
- Lube trucks.
DURABILITY AND PERFORMANCE
- Extensively and rigorously field tested. Reliable performance.
- Heavy Duty aluminium pressure cast body to withstand the toughest working conditions.
- High flow pressure balanced valve for comfortable use.
- Large port inlet swivel (1" and 3/4"). Inlet filter with large screen surface.
- Safety guard avoids accidental openings.
- Trigger can be locked open for dispensing large volumes.
- Outlets have 3/4" BSP (M) connection thread and use a bonded seal washer to assure a leak free operation.

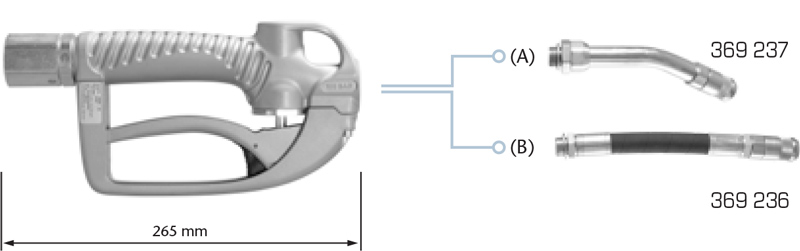

Available Models & Accessories
| PART No. | OUTLET NOZZLE TYPE | INLET SWIVEL THREAD | |
| 363 053 | 30º rigid with semiautomatic non-drip tip | 3/4" BSP (F) | (A) |
| 363 054 | Flexible outlet with semiautomatic non-drip tip | 3/4" BSP (F) | (B) |
| 363 055 | 30º rigid with semiautomatic non-drip tip | 1" BSP (F) | (C) |
| 363 056 | Flexible outlet with semiautomatic non-drip tip | 1" BSP (F) | (D) |
Technical Data
| Maximum flow rate | 90 l/min (24 gal/min) |
| Maximum working pressure | 100 bar (1,450 psi) |
| Operating temperature range | -10 ºC to 70 ºC (14 to 160 ºF) |
| Fluid inlet | 3/4" BSP (F) or 1" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Wetted parts | Aluminium / Zinc plated steel and brass / NBR |
| Fluid compatibility | All type of synthetic and mineral oils, antifreeze solutions, hydraulic fluid |
| Weight | 2,05 kg (4.5 lb) |
