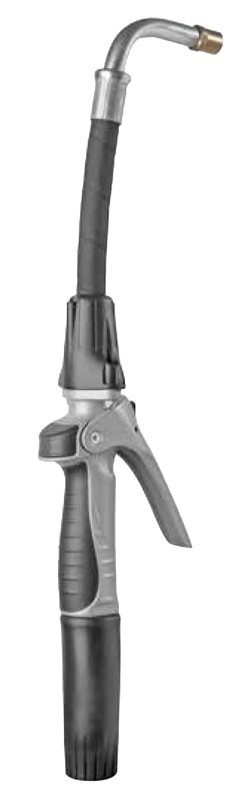

SAMOA control valves are used at the end of hose assembly to dispense lubricants and antifreeze solutions.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Gear Oil.
- Hydraulic oil and fluids.
- ATF.
- Antifreeze solutions.
MARKETS SERVED
- Car and truck dealerships.
- Fast lube and maintenance shops.
- Fleet service.
- Mining and construction.
- Lube trucks.
DURABILITY AND PERFORMANCE
- Extensively and rigorously field tested. Reliable performance.
- Aluminium body with light weight ergonomic design. Soft grip valve for comfort.
- Cam and piston valve design for minimum flow resistance.
- Large inlet swivel and inlet filter with large screen surface.
- Swivel and outlet covers.
- Safety latch must be depressed before product can be dispensed. Trigger can be locked open for dispensing large volumes.
- Wide selection of outlets available.

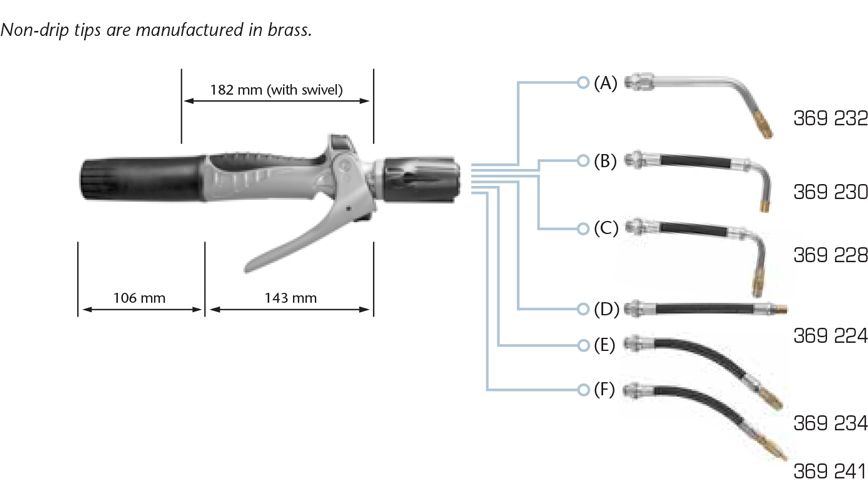

Available Models & Accessories
| PART No. | OUTLET NOZZLE TYPE | INCLUDED OUTLET PART No. | |
| 363 100 | No outlet | - | |
| 363 116 | 60º rigid outlet and quarter turn non-drip tip | 369 232 | (A) |
| 363 115 | Flexible outlet with 90º tube and automatic non-drip tip | 369 230 | (B) |
| 363 114 | Flexible outlet with 90º tube and quarter turn non-drip tip | 369 228 | (C) |
| 363 112 | Flexible outlet and automatic non-drip tip | 369 224 | (D) |
| 363 117 | Formable outlet and quarter turn non-drip | 369 234 | (E) |
| 363 118 | Formable outlet and quarter turn narrow non-drip (Ø 8 mm) | 369 241 | (F) |
Technical Data
| Maximum flow rate | 40 l/min (11 gal/min) |
| Maximum working pressure | 100 bar (1,450 psi) |
| Operating temperature range | -10 ºC to 70 ºC (14 to 160 ºF) |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted parts | Aluminium / Zinc plated steel / TPU / Polyamide |
| Fluid compatibility | Lubricants, ATF, antifreeze (Glycol) and antifreeze water solutions |
| Weight | 470 g (1 lb) |
