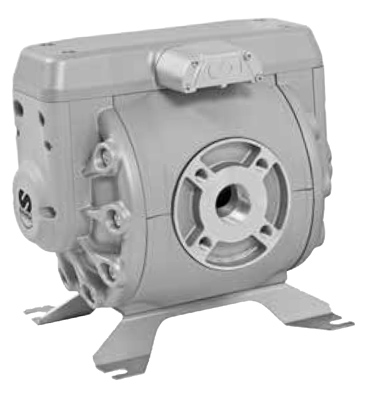

Very reliable diaphragm aluminium pumps for large volume transfer (250 l/min max.), dispensing and evacuating a variety of fluids.
These pumps have an aluminium air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions, lubricants and diesel, and waste oil evacuation.
They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.
FLUIDS HANDLED
- Antifreeze and antifreeze solutions
- Lubricants
- Waste oil
- Diesel
MARKETS SERVED
- Service shops
- Car and truck dealers
- In plant
- Agriculture
- Lube trucks
- Mining and construction
- Railroad and mass transit
Available Models & Accessories
| PART No. | Materials | Applications |
| 554 010 | Aluminium, Hytrel®, Acetal, Viton®, Stainless steel | Antifreeze solutions |
| 554 030 | Aluminium, Buna-N, Stainless steel | Antifreeze solutions, lubricants, diesel, waste oil evacuation and transfer |
Technical Data
| Pump pressure ratio | 1:1 |
| Maximum Free Delivery(1) | 250 l/min |
| Delivery Per Stroke Approx.(1) | 0.60 litres |
| Delivery Per Cycle (2 X Strokes)(1) | 1.2 litre |
| Air Pressure Operating Range | 1.5 to 8 bar |
| Solids in Suspension Maximum Size | 6 mm |
| Maximum Dry Suction Head(1) | 5 m |
| Maximum Wet Suction Head(1) | 8 m |
| Weight | 20 kg |
| Fluid Inlet Connection | 1 1/2" BSP (F) and DIN PN-10 flange |
| Fluid Outlet Connection | 1 1/2" BSP (F) and DIN PN-10 flange |
| Air Inlet Connection | 1/2" NPSM (F) |
- Data measured with water, air inlet pressure 7 bar (100 psi), 20 ºC (68 ºF).

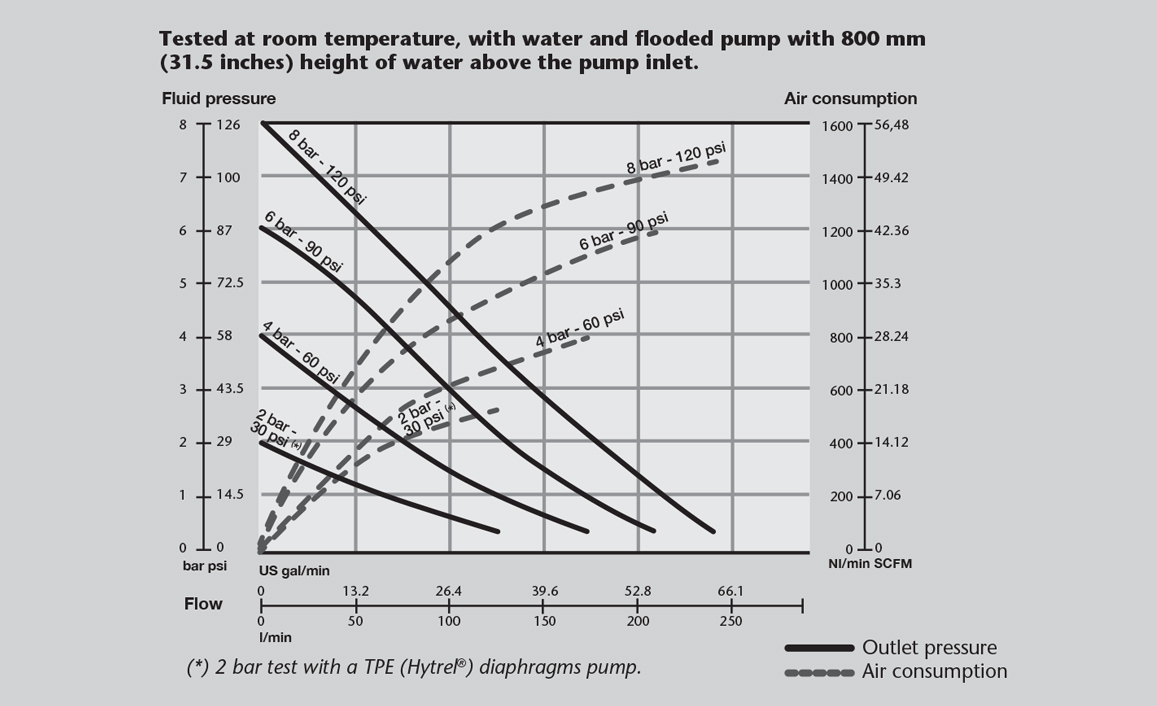

Technical Graphs
