Very compact and reliable diaphragm pumps for medium volume transfer (50 l/min max.), dosing, spraying and dispensing a variety of fluids.
POLYPROPYLENE PUMPS have a polypropylene air motor. Typical applications for these pumps are transferring and dispensing of windshield wash and antifreeze solutions, pure windshield wash and AdBlue®/DEF. ATEX approved pumps are available for use in potential explosive environments and with flammable fluids like pure ethanol.
They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.
FLUIDS HANDLED
- Antifreeze and antifreeze solutions
- Windshield wash solutions
- Pure windshield wash
- Ethanol
- Detergents
- AdBlue®/DEF
- Lubricants
- Waste oil
- Diesel
MARKETS SERVED
- Service shops
- Car and truck dealers
- In plant
- Agriculture
- Mining and construction
- Railroad and mass transit
- Lube trucks
Available Models & Accessories
| PART No. | Materials | Applications |
| 551 010 | Aluminium, Hytrel®, Acetal, Stainless steel, Viton® | Antifreeze and windshield wash solutions |
| 551 030 | Aluminium, Buna-N, Stainless steel | Antifreeze solutions, lubricants, diesel, waste oil evacuation and transfer |
Technical Data
| Pump pressure ratio | 1:1 |
| Maximum Free Delivery(1) | 100 l/min |
| Delivery Per Stroke Approx.(1) | 0.25 litres |
| Delivery Per Cycle (2 X Strokes)(1) | 0.50 litres |
| Air Pressure Operating Range | 1.5 to 8 bar |
| Solids in Suspension Maximum Size | 4 mm |
| Maximum Dry Suction Head(1) | 4.5 m |
| Maximum Wet Suction Head(1) | 7 m |
| Weight | 7.2 kg |
| Fluid Inlet Connection | 1" BSP (F) |
| Fluid Outlet Connection | 1" BSP (F) |
| Air Inlet Connection | 3/8" NPSM (F) |
- Data measured with water, air inlet pressure 7 bar (100 psi), 20 ºC (68 ºF).

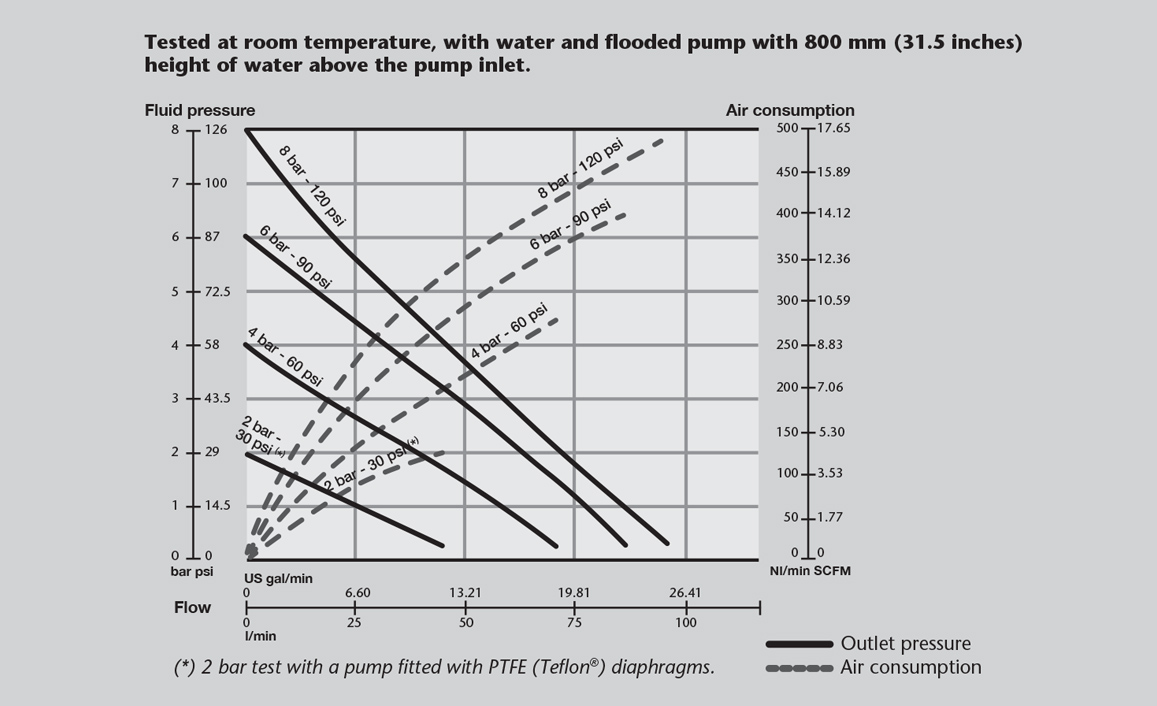

Technical Graphs
