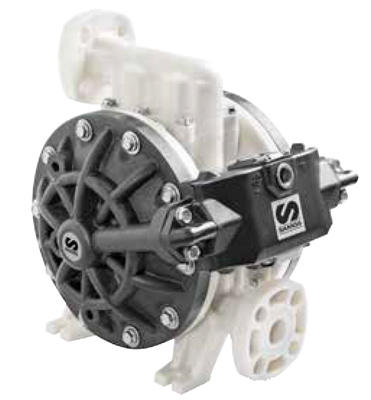

Very reliable diaphragm polypropylene pump for large volume transfer (200 l/min max.), dosing, and dispensing a variety of fluids.
POLYPROPYLENE PUMPS have a polypropylene air motor. Typical applications for these pumps are transferring and dispensing of windshield wash and antifreeze solutions and AdBlue®/DEF.
They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.
Pump inlet and outlet ports can be mounted in different positions for increased installation versatility.
FLUIDS HANDLED
- Antifreeze and antifreeze solutions
- Windshield wash solutions
- AdBlue®/DEF
MARKETS SERVED
- Service shops
- Car and truck dealers
- In plant
- Agriculture
- Mining and construction
- Railroad and mass transit
Available Models & Accessories
| PART No. | Materials | Applications |
| 555 164 | Polypropylene, Hytrel®, PTFE, Viton®, Stainless steel | Antifreeze and windshield wash solutions, Ad Blue®/DEF. |
Technical Data
| Pump pressure ratio | 1:1 |
| Maximum Free Delivery(1) | 200 l/min |
| Delivery Per Stroke Approx.(1) | 0.50 litres |
| Delivery Per Cycle (2 X Strokes)(1) | 1 litre |
| Air Pressure Operating Range | 1.5 to 8 bar |
| Solids in Suspension Maximum Size | 6 mm |
| Maximum Dry Suction Head(1) | 5 m |
| Maximum Wet Suction Head(1) | 8 m |
| Weight | 10.5 kg |
| Fluid Inlet Connection | DIN DN 25 and 1" ANSI flange |
| Fluid Outlet Connection | DIN DN 25 and 1" ANSI flange |
| Air Inlet Connection | 3/8" NPSM (F) |
- Data measured with water, air inlet pressure 7 bar (100 psi), 20 ºC (68 ºF).

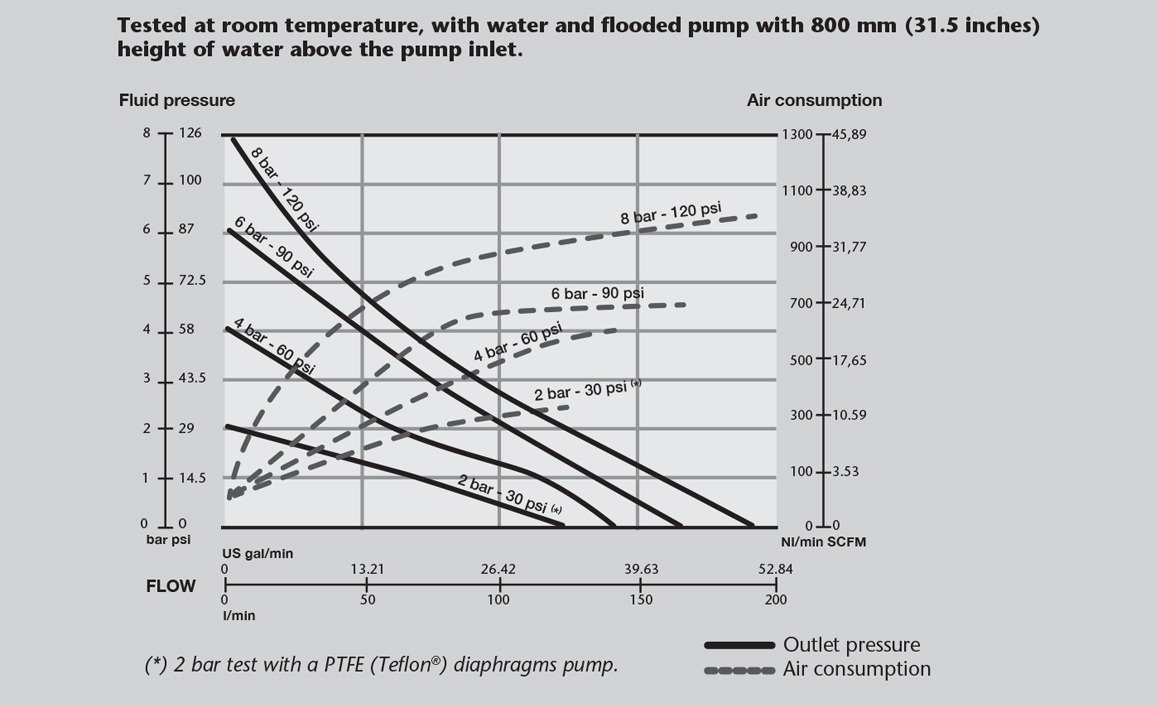

Technical Graphs
