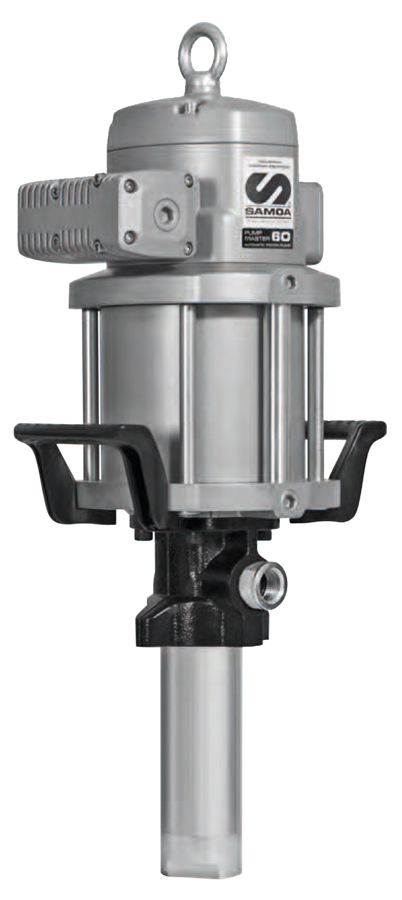

Double acting air operated moderate pressure and high delivery for very large installation with simultaneous operation outlets or when low air pressure would limit pump performances. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Hydraulic oil.
- Gear oil.
- Transmission fluid.
MARKETS SERVED
- Very Large auto and truck dealers.
- Construction equipment maintenance.
- Mining equipment maintenance.
- Large fleets.
- Railroad and mass transit maintenance.
- Marine.
- In plant oil distribution.
Available Models & Accessories

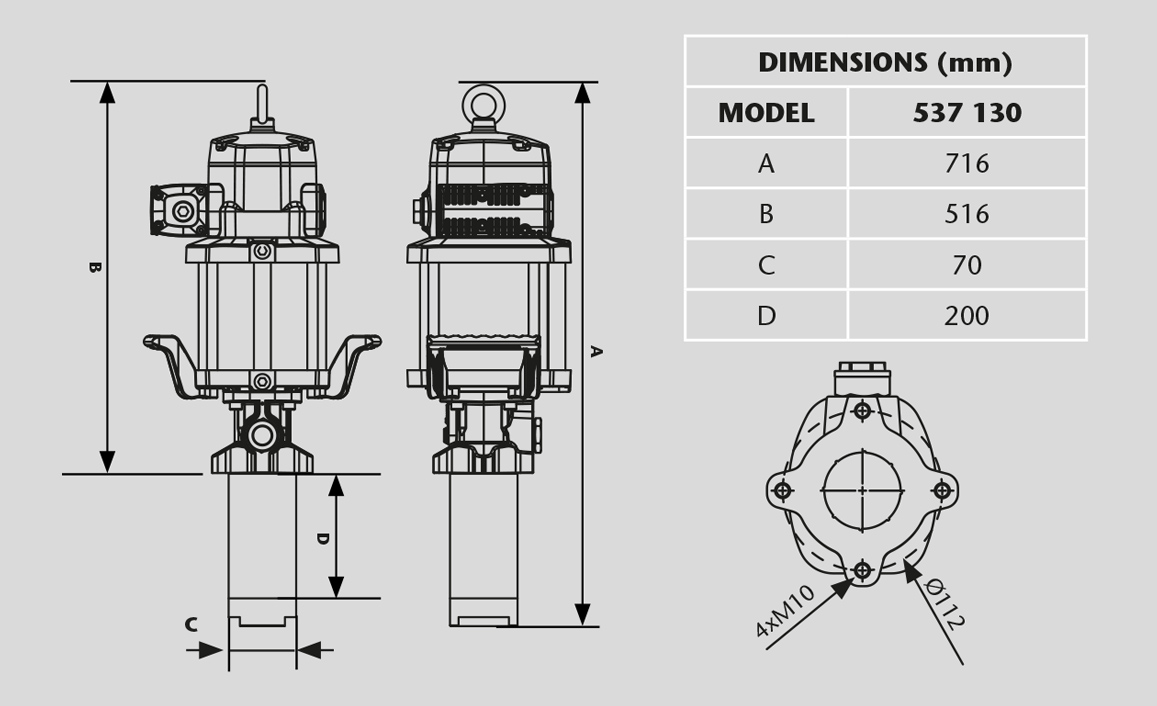

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 537 130 | Universal stub pump | 200 mm | 716 mm | 19 kg |
Technical Data
| Pump pressure ratio | 12:1 |
| Air pressure operating range | 1.5 to 12 bar (20 to 170 psi) |
| Air consumption (1) | 1,150 Nl (41 cfm) |
| Maximum fluid outlet pressure | 144 bar (2,040 psi) |
| Air motor diameter | 150 mm (6") |
| Air motor effective diameter | 150 mm (6") |
| Air motor stroke | 100 mm (4") |
| Delivery at 60 cpm | 20 l/min (5.30 gal/min) |
| Maximum free flow delivery | 65 l/min (17 gal/min) |
| Air inlet | 1/2" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Wetted and seal materials | Cast iron / Hard chromed steel / Steel / Polyurethane / NBR |
| Noise level (2) | 80 dB |
- Maximum air consumption with 5 bar air inlet pressure and 60 cycles/min.
- Maximum noise level measured at 1 m from the pump, 7 bar (100 psi) air pressure and free delivery.

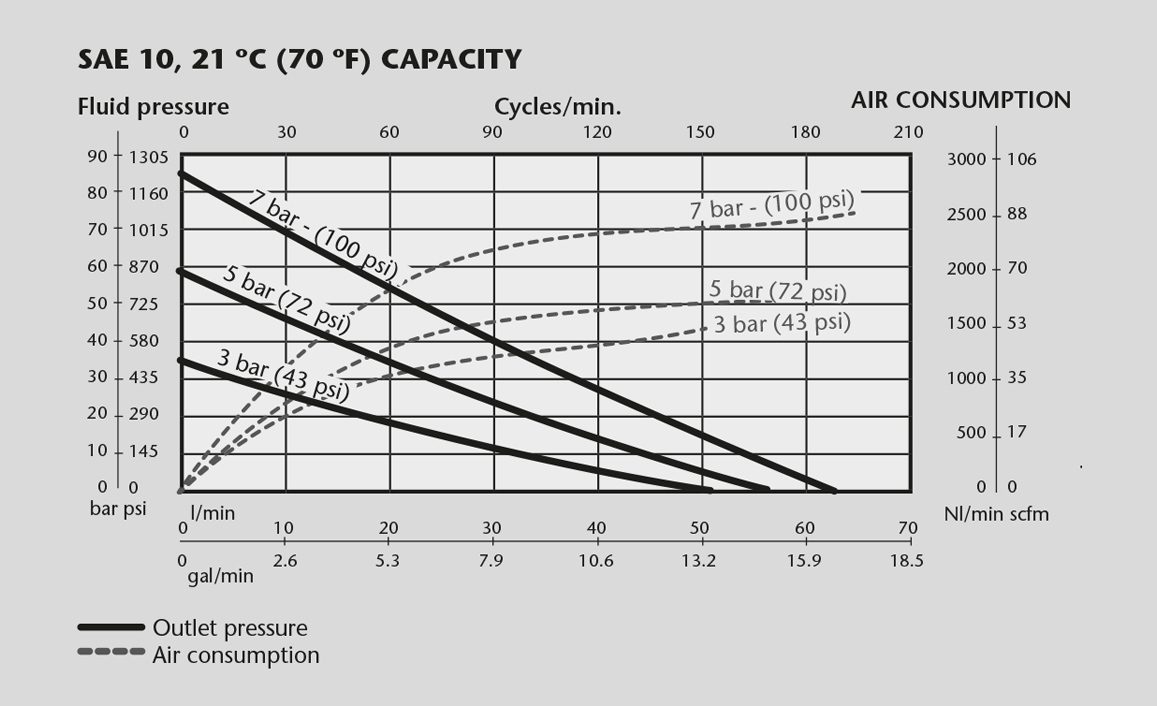

Technical Graphs
