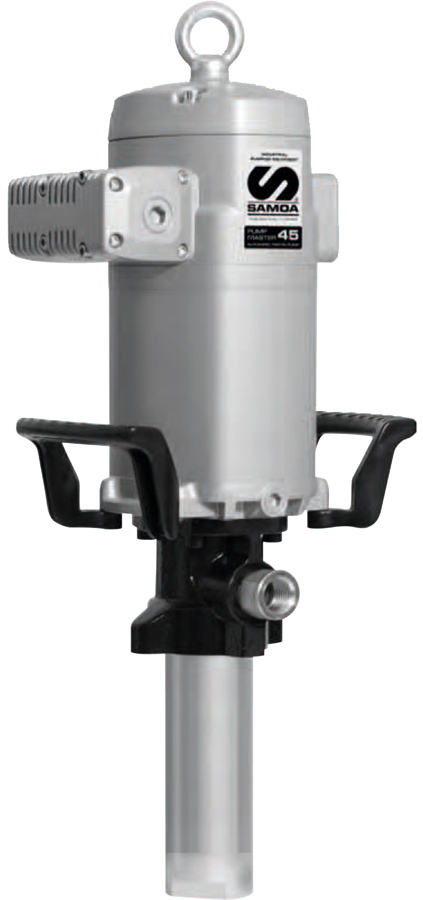

Double acting air operated medium pressure for large systems with simultaneous operation outlets that require a high delivery pump. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Hydraulic oil.
- Gear oil.
- Transmission fluid.
MARKETS SERVED
- Large auto and truck dealers.
- Construction equipment maintenance.
- Mining equipment maintenance.
- Large fleets.
- Railroad and mass transit maintenance.
- Marine.
- In plant oil distribution.

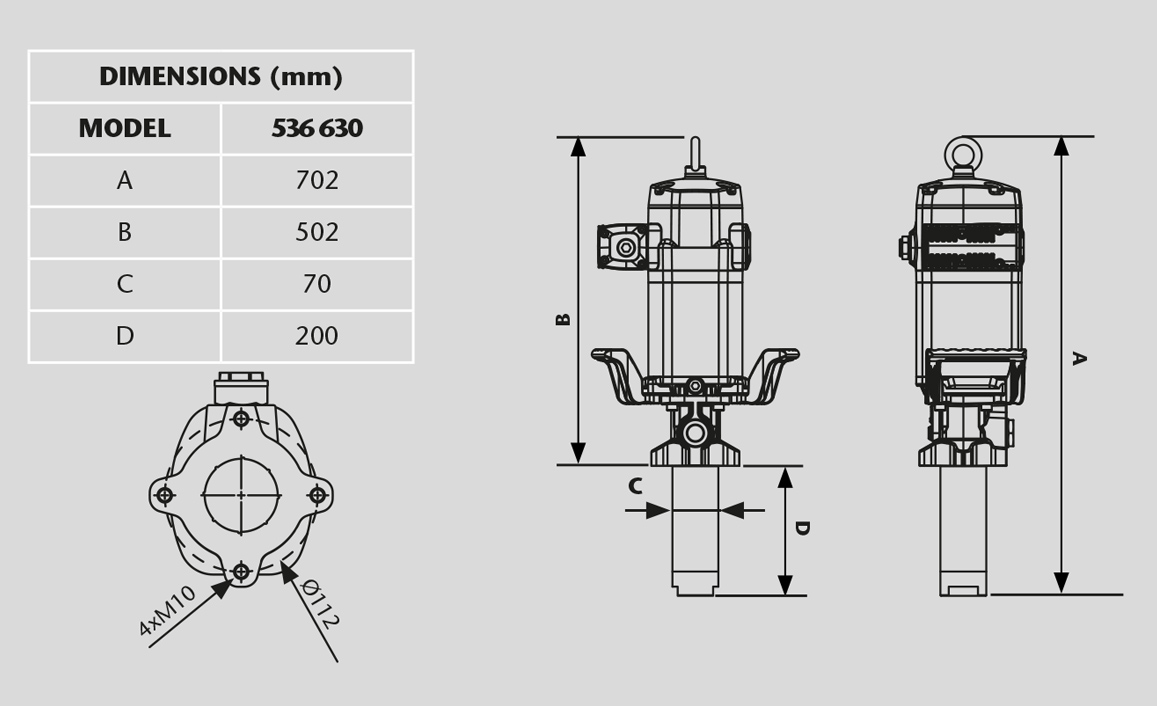

Available Models & Accessories
| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 536 630 | Universal stub pump | 200 mm | 702mm | 17 kg |
Technical Data
| Pump pressure ratio | 6:1 |
| Air pressure operating range | 1.5 to 12 bar (20 to 170 psi) |
| Air consumption (1) | 830 Nl/min (29 cfm) |
| Maximum fluid outlet pressure | 72 bar (1,020 psi) |
| Air motor diameter | 115 mm (4 1/2") |
| Air motor effective diameter | 115 mm (4 1/2") |
| Air motor stroke | 100 mm (4") |
| Delivery at 80 cpm | 25 l/min (6.60 gal/min) |
| Maximum free flow delivery | 95 l/min (25.09 gal/min) |
| Air inlet | 1/2" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Wetted and seal materials | Cast iron / Hard chromed steel / Steel / Polyurethane / NBR |
| Noise level (2) | 80 dB |
- Maximum air consumption with 5 bar air inlet pressure and 80 cycles/min.
- Maximum noise level measured at 1 m from the pump, 7 bar (100 psi) air pressure and free delivery.

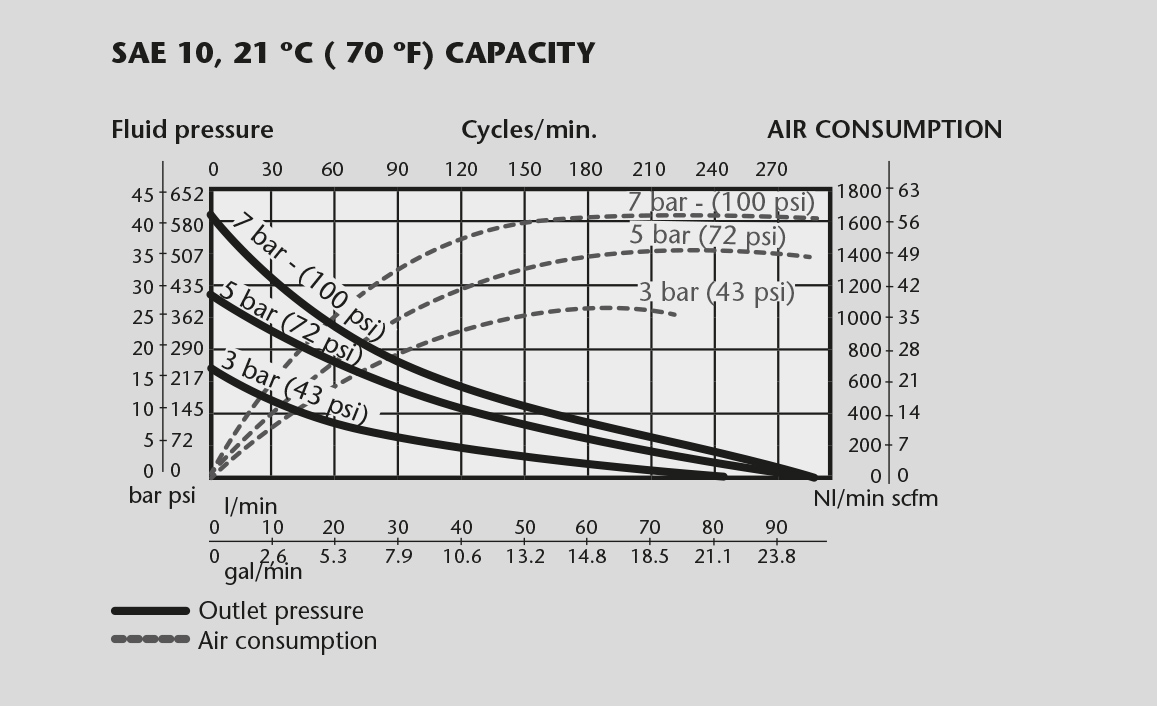

Technical Graphs
