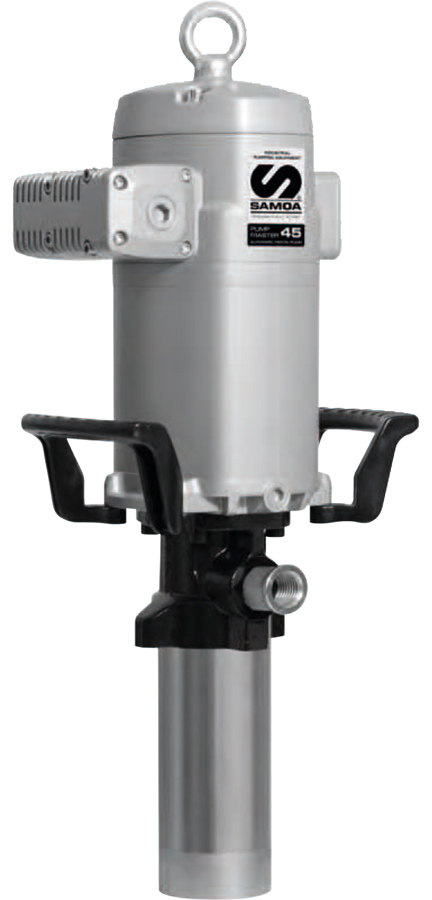

Double acting air operated medium pressure and high delivery pump for large volume transfer applications. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Hydraulic oil.
- Gear Lube.
- Transmission fluid.
MARKETS SERVED
- Construction equipment.
- Mining equipment.
- Large fleets.
- Railroad and mass transit maintenance.
- Marine.
- In plant oil distribution and transfer.
Available Models & Accessories

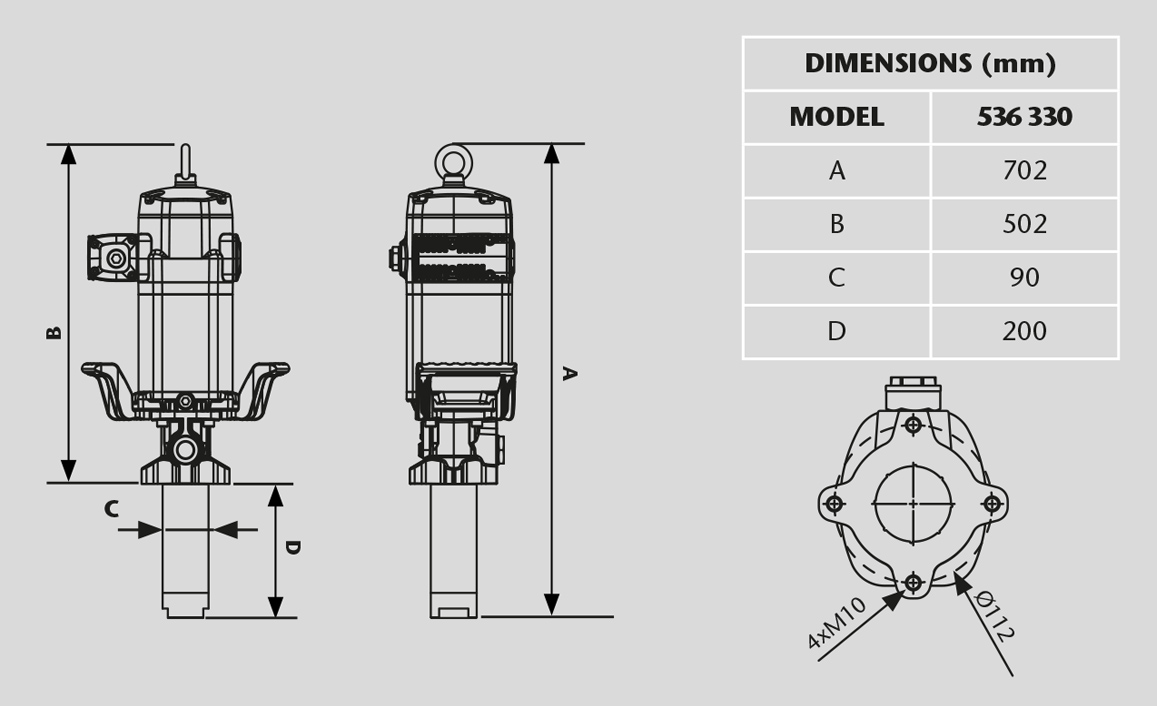

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 536 330 | Universal stub pump | 200 mm | 702 mm | 17 kg |
Technical Data
| Pump pressure ratio | 3:1 |
| Air pressure operating range | 1.5 to 12 bar (20 to 170 psi) |
| Air consumption (1) | 800 Nl/min (28 cfm) |
| Maximum fluid outlet pressure | 36 bar (510 psi) |
| Air motor diameter | 115 mm (4 1/2") |
| Air motor effective diameter | 115 mm (4 1/2") |
| Air motor stroke | 100 mm (4") |
| Delivery at 80 cpm | 12 l/min (3.2 gal/min) |
| Maximum free flow delivery | 120 l/min (31.70 gal/min) |
| Air inlet | 1/2" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Wetted and seal materials | Cast iron / Nickel / Aluminium / Steel / Polyurethane / NBR |
| Noise level (2) | 80 dB |
- Maximum air consumption with 5 bar air inlet pressure and 80 cycles/min.
- Maximum noise level measured at 1 m from the pump, 7 bar (100 psi) air pressure and free delivery.

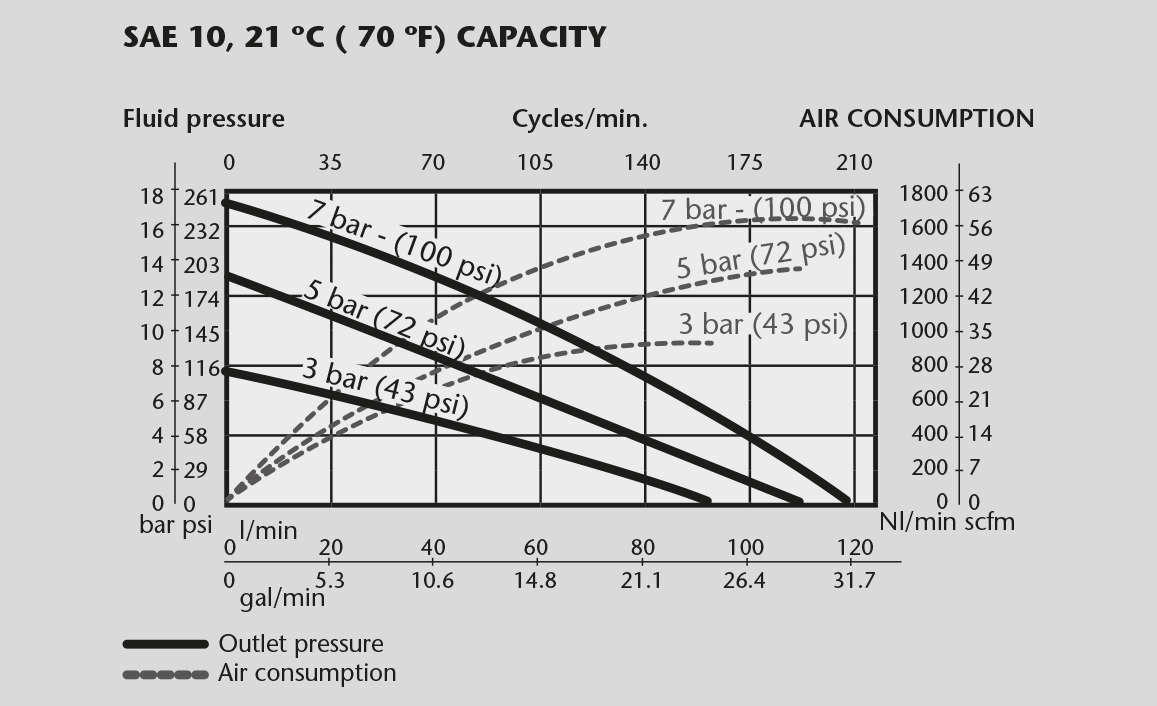

Technical Graphs
