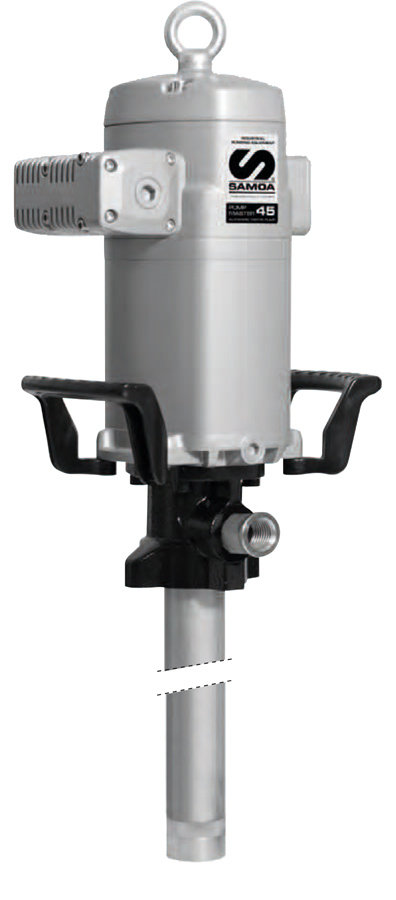

Double acting air operated moderate pressure pump for very large oil systems or when a low air pressure or cold temperatures would limit pump performance. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pumps. Pump 536 010 can also use bung adaptor (PN 360 006) for bung mounting.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Hydraulic oil.
- Gear oil.
- Transmission fluid.
MARKETS SERVED
- Large auto and truck dealers.
- Construction equipment maintenance.
- Mining equipment maintenance.
- Railroad and mass transit maintenance.
- Large fleets.
- Lube trucks.
- Marine.
- In plant oil distribution.
Available Models & Accessories

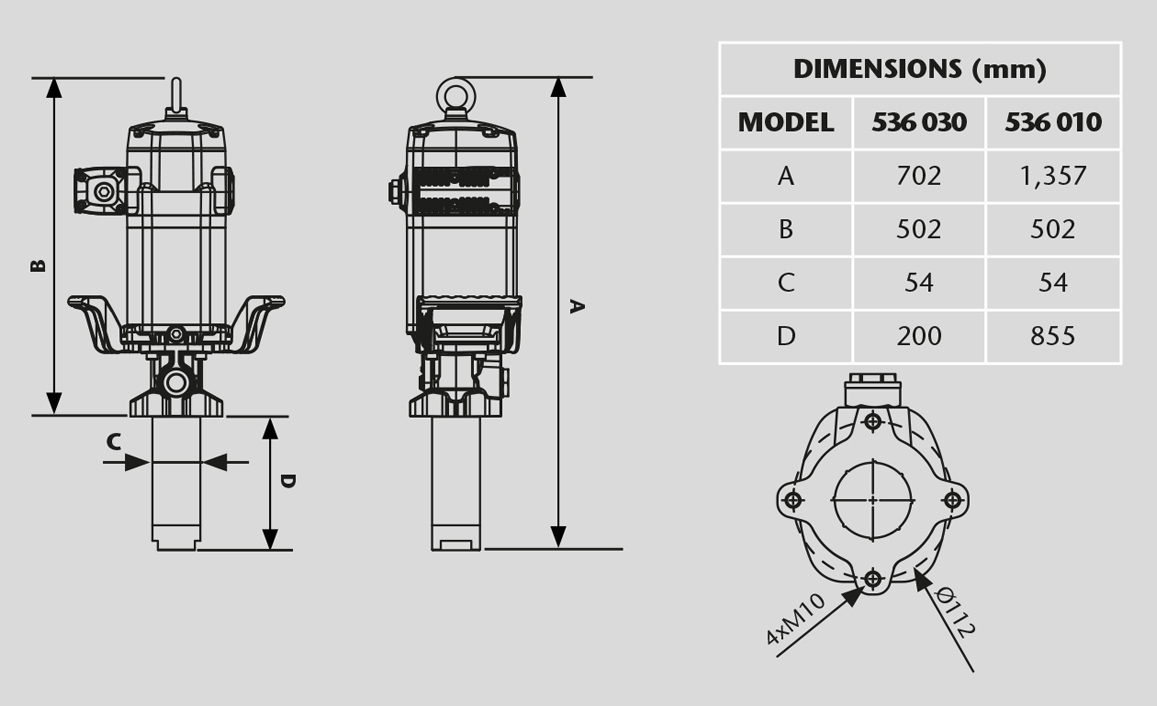

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 536 030 | Universal stub pump | 200 mm | 702 mm | 16.5 kg |
| 536 010 | 205 l (55 gal) drum bung mounted |
855 mm | 1,357 mm | 17 kg |
Technical Data
| Pump pressure ratio | 10:1 |
| Air pressure operating range | 1.5 to 12 bar (20 to 170 psi) |
| Air consumption (1) | 850 Nl/min (30 cfm) |
| Maximum fluid outlet pressure | 120 bar (1,700 psi) |
| Air motor diameter | 115 mm (4 1/2") |
| Air motor effective diameter | 115 mm (4 1/2") |
| Air motor stroke | 100 mm (4") |
| Delivery at 80 cpm | 15 l/min (4 gal/min) |
| Maximum free flow delivery | 65 l/min (17.17 gal/min) |
| Air inlet | 1/2" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Wetted and seal materials | Cast iron / Hard chromed steel / Steel / Polyurethane / NBR |
| Noise level (2) | 80 dB |
- Maximum air consumption with 5 bar air inlet pressure and 80 cycles/min.
- Maximum noise level measured at 1 m from the pump, 7 bar (100 psi) air pressure and free delivery.

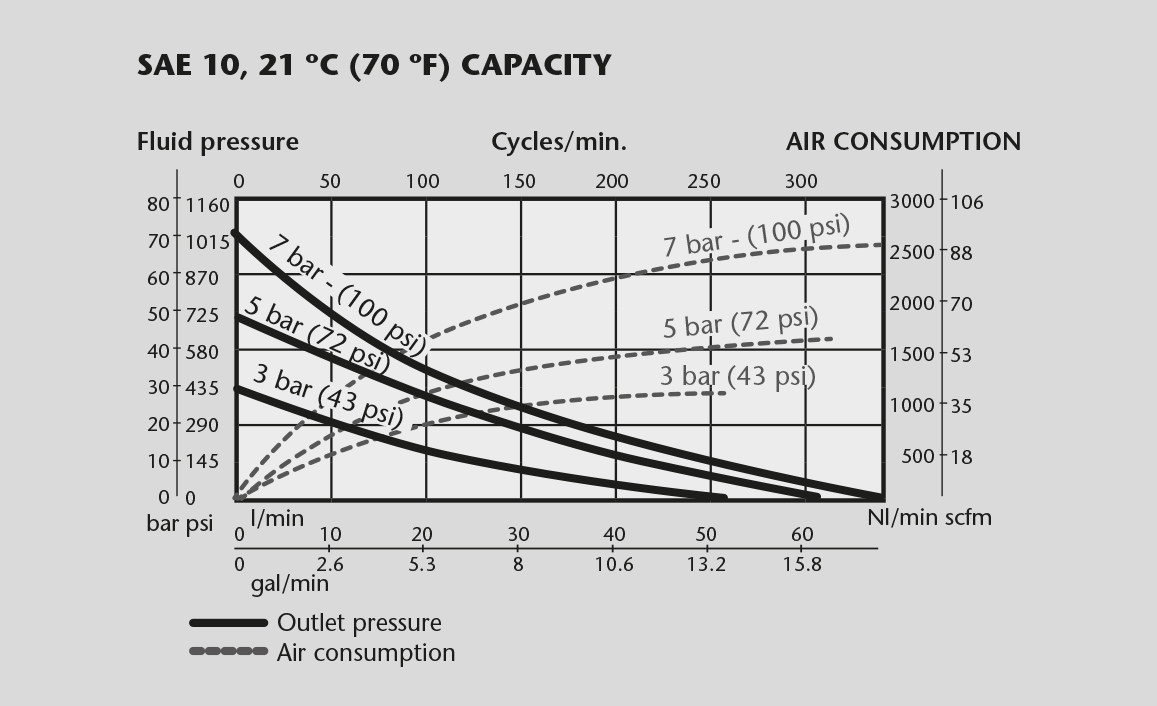

Technical Graphs
