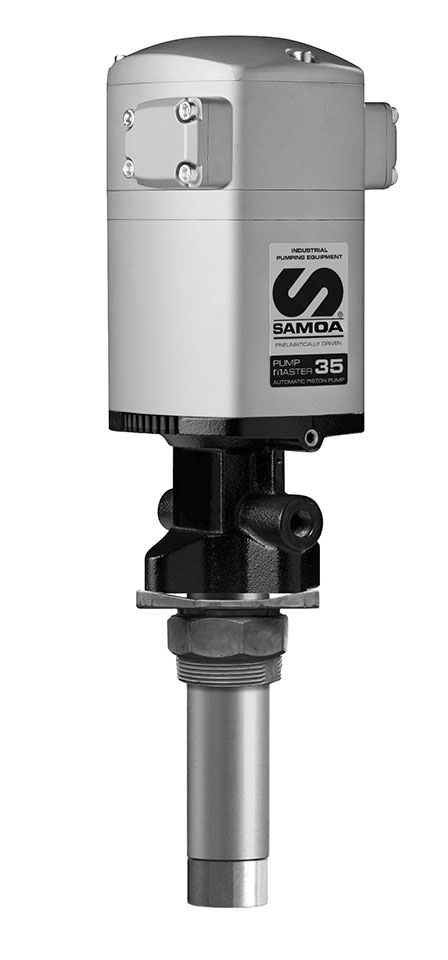

Double acting air operated high pressure and reliable delivery pump for oil distribution applications. Built in port for optional (PN 609 008) pressure relief valve.
FLUIDS HANDLED
- Synthetic and mineral based oil.
- Hydraulic oil.
- Gear Lube.
- Transmission fluid.
- Corrosion protection fluids.
MARKETS SERVED
- Vehicle maintenance centres.
- Fleet service facilities.
- Mining and construction.
- Lube trucks.
- Marine.
- Railroad and mass transit
- In-plant.

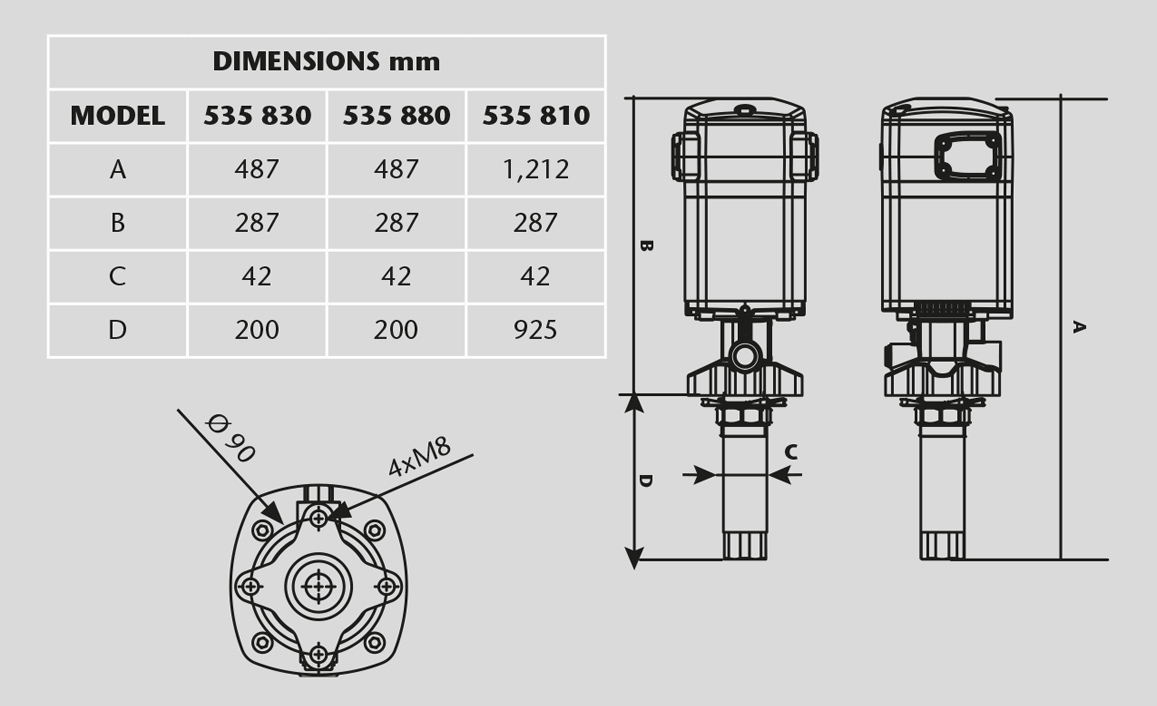

Available Models & Accessories
| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 535 830 | Universal stub pump with bung adaptor |
200 mm | 487 mm | 6.8 kg |
| 535 880 | Universal stub pump | 200 mm | 487 mm | 6.4 kg |
| 535 810 | 205 l (55 gal) drum bung mounted |
925 mm | 1,212 mm | 8.3 kg |
Technical Data
| Pump pressure ratio | 8:1 |
| Air pressure operating range | 2 to 12 bar (30 to 175 psi) |
| Air consumption (1) | 350 Nl/min (12.4 scfm) |
| Maximum fluid outlet pressure | 96 bar (1,400 psi) |
| Air motor diameter | 80 mm (3.15") |
| Air motor effective diameter | 80 mm (3.15") |
| Air motor stroke | 80 mm (3.15") |
| Delivery at 80 cpm | 7 l/min (1.9 gal/min) |
| Maximum free flow delivery | 17 l/min (4.5 gal/min) |
| Air inlet | 3/8" BSP (F) |
| Fluid inlet | 1" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted and seal materials | Cast iron / Hard chromed steel / Steel / Polyurethane, NBR |
| Noise level (2) | 80 dB |
- Maximum air consumption with 5 psi (72 bar) air inlet pressure and 80 cpm.
- Maximum noise level measured at 1 m from the pump, 7 bar (100 psi) air pressure and free delivery.

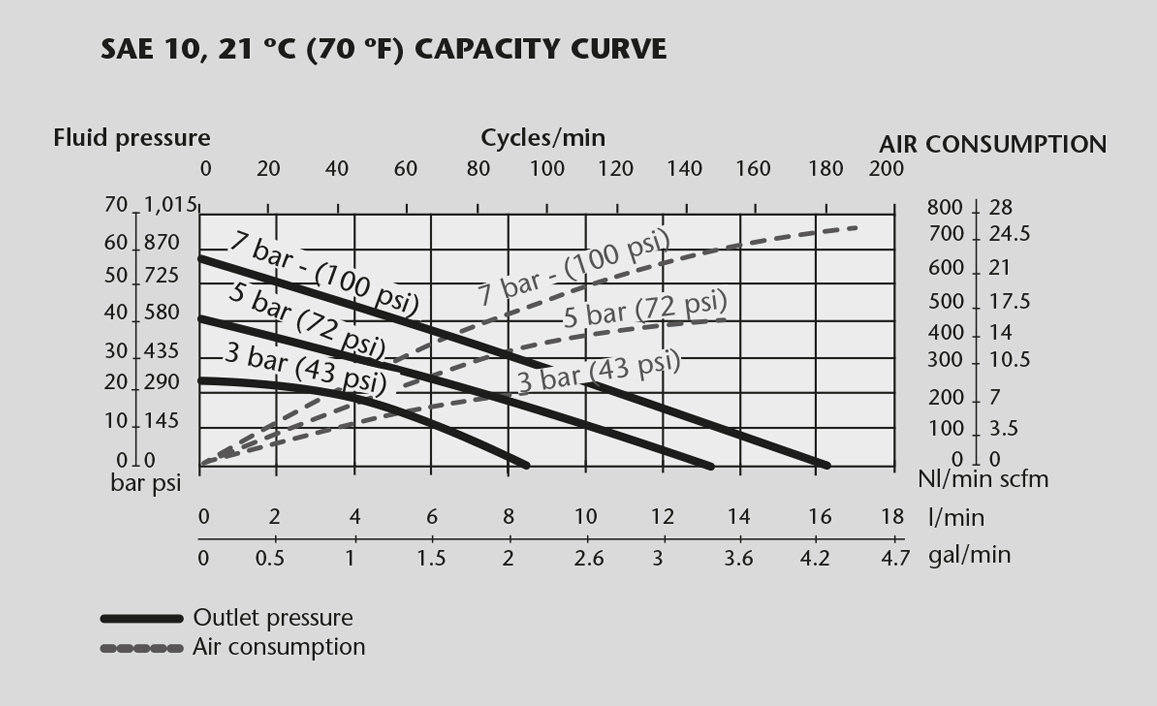

Technical Graphs
