Double acting air operated medium pressure and reliable delivery pump for oil distribution applications. Built in port for optional (PN 609 007) pressure relief valve. Bung adaptor.
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Hydraulic oil.
- Gear Lube.
- Transmission fluid.
MARKETS SERVED
- Auto and truck dealers.
- Fleet service facilities.
- Mining and construction.
- Lube trucks.
- Marine.
- Railroad and mass transit
- In-plant.
Available Models & Accessories
| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 535 530 | Universal stub pump with bung adaptor |
200 mm | 469 mm | 5.6 kg |
| 535 580 | Universal stub pump | 200 mm | 469 mm | 5.3 kg |
| 535 510 | 205 l (55 gal) drum bung mounted |
925 mm | 1,194 mm | 8 kg |
Technical Data
| Pump pressure ratio | 5:1 |
| Air pressure operating range | 2 to 12 bar (30 to 175 psi) |
| Air consumption (1) | 350 Nl/min (12.4 scfm) |
| Maximum fluid outlet pressure | 60 bar (875 psi) |
| Air motor diameter | 80 mm (3.15") |
| Air motor effective diameter | 80 mm (3.15") |
| Air motor stroke | 80 mm (3.15") |
| Delivery at 80 cpm | 12 l/min (3.2 gal/min) |
| Maximum free flow delivery | 30 l/min (8 gal/min) |
| Air inlet | 3/8" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted and seal materials | Hard chromed steel / Steel / Polyurethane / NBR / Aluminium |
| Noise level (2) | 80 dB |
- Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
- Maximum noise level measured at 1 m from the pump, 7 bar (100 psi) air pressure and free delivery.

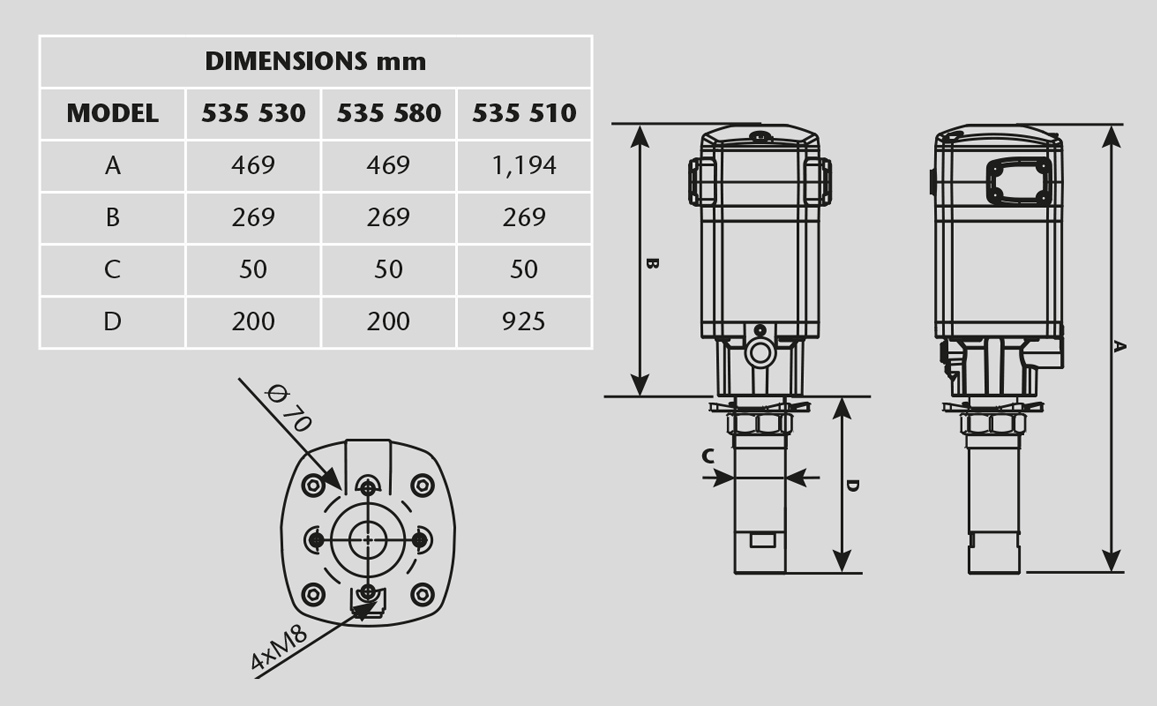

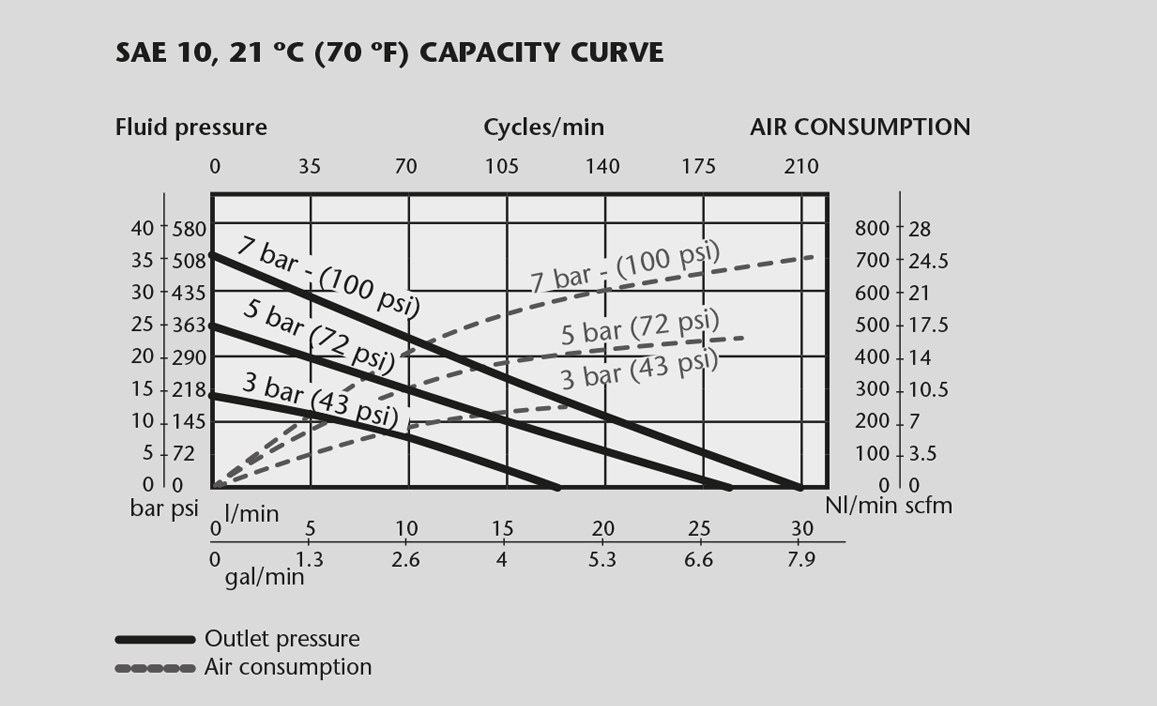

Technical Graphs
