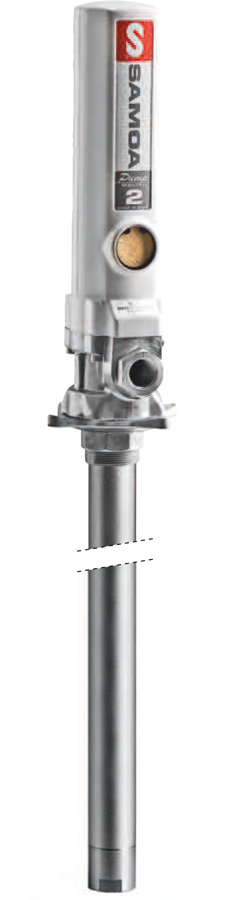

Double acting air operated medium pressure pumps for dispensing lubricants from mobile units, oil distribution packages and small systems. Pumps include 2" BSP (M) height adjustable bung adaptor for tank or drum bung mounting. Built in port for optional pressure relief valve (PN 609 007).
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Transmission fluid.
- Hydraulic oil.
- Gear oil..
MARKETS SERVED
- Auto Dealers.
- Service shops.
- Fast lube centres.
- Agriculture.
- Mining and construction.
Available Models & Accessories

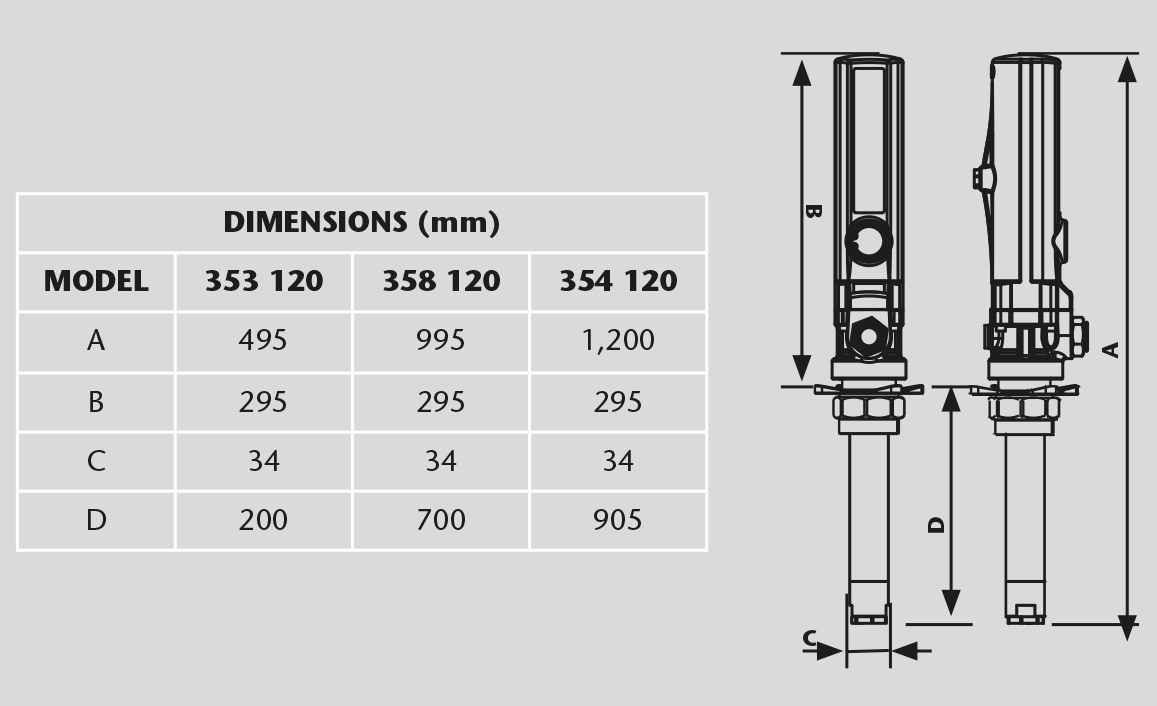

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 353 120 | Universal stub pump | 200 mm | 495 mm | 2 kg |
| 358 120 | 60 l (16 gal) drum bung mounted |
700 mm | 995 mm | 3 kg |
| 354 120 | 205 l (55 gal) drum bung mounted |
905 mm | 1200 mm | 3.5 kg |
Technical Data
| Pump pressure ratio | 3:1 |
| Air pressure operating range | 1.5 - 10 bar (20 to 140 psi) |
| Air consumption (1) | 180 NL/min (6.4 cfm) |
| Maximum fluid outlet pressure | 30 bar (420 psi) |
| Air motor diameter | 51 mm (2") |
| Air motor effective diameter | 35 mm (1.4") |
| Air motor stroke | 75 mm (3") |
| Delivery at 200 cycles/min. | 10 l/min (2.7 Gal/min) |
| Maximum free flow delivery (2) | 35 l/min (9.3 Gal/min) |
| Air inlet | 1/4" BSP (F) |
| Fluid inlet (short pump only) | 3/4" BSP (F) |
| Fluid outlet | 1/2" NPSM (F) |
| Wetted and seal materials | Aluminium / Steel / NBR / PTFE |
| Noise level (3) | 80 dB |
- Air consumption with 6 bar air inlet pressure and 200 cycles per minute.
- Maximum free delivery at 7 bar.
- Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.

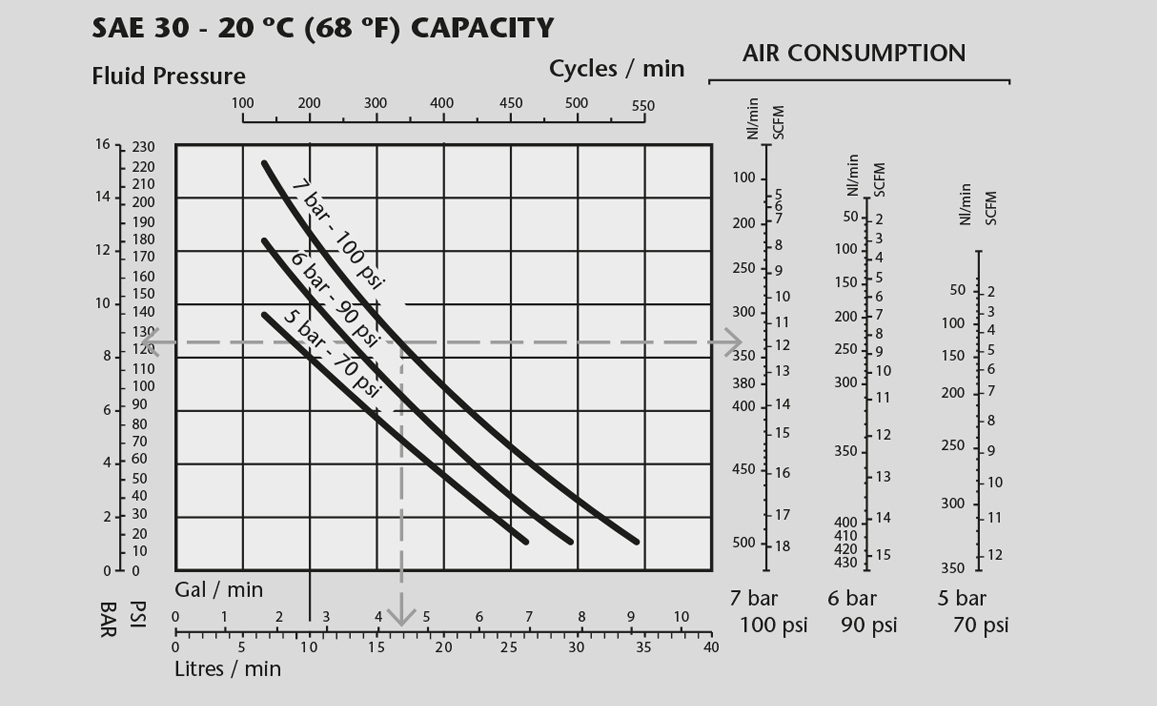

Technical Graphs
