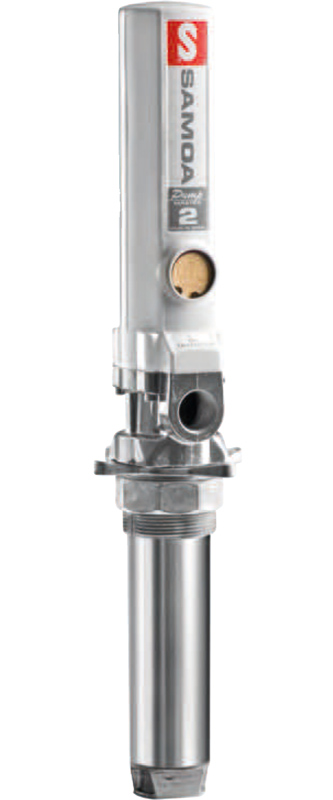

Double acting air operated low pressure pumps for transferring lubricants. Pumps include height adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting. Built in port for optional pressure relief valve (PN 609 007).
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Transmission fluid.
- Hydraulic oil.
- Diesel.
MARKETS SERVED
- Service shops.
- In plant oil transfer.
- Agriculture.
- Marine.
- Mining and construction.
Available Models & Accessories

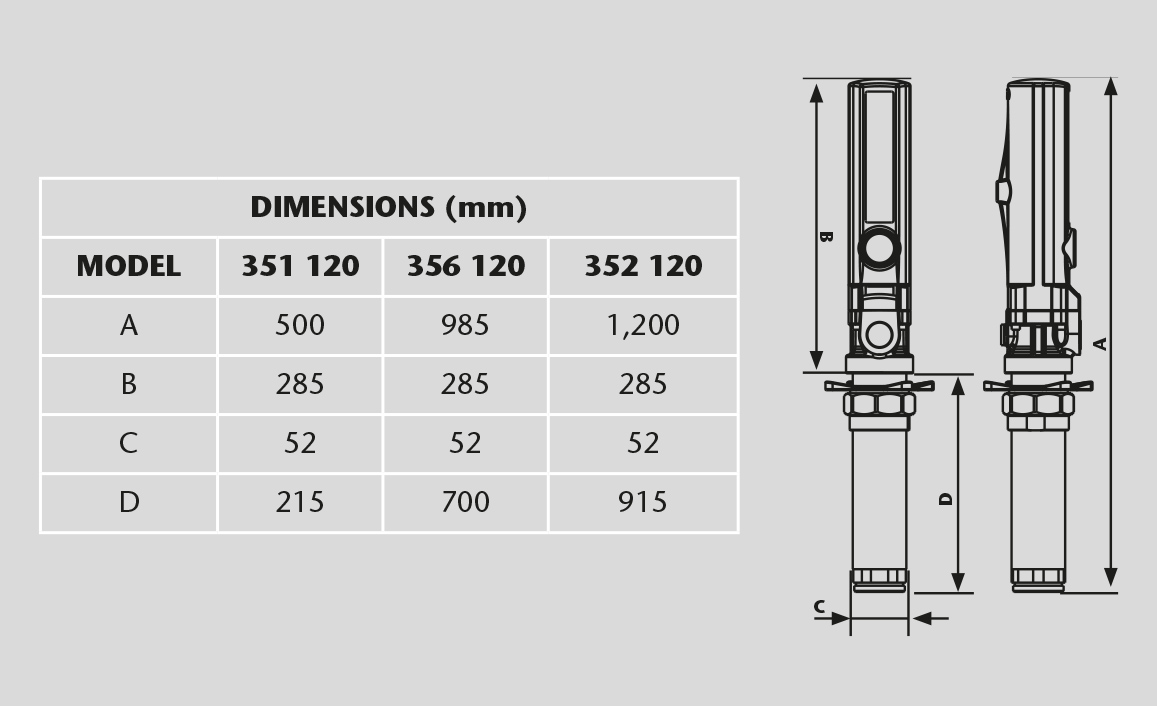

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 351 120 | Universal stub pump | 215 mm | 500 mm | 2.5 kg |
| 356 120 | 60 l (16 gal) drum bung mounted |
700 mm | 985mm | 4.8 kg |
| 352 120 | 205 l (55 gal) drum bung mounted |
915 mm | 1200 mm | 5.4 kg |
Technical Data
| Pump pressure ratio | 1:1 |
| Air pressure operating range | 1.5 - 10 bar (20 to 140 psi) |
| Air consumption (1) | 150 NL/min (5.3 cfm) |
| Maximum fluid outlet pressure | 10 bar (140 psi) |
| Air motor diameter | 51 mm (2") |
| Air motor effective diameter | 35 mm (1.4") |
| Air motor stroke | 75 mm (3") |
| Delivery at 150 cycles/min. | 20 l/min (5.3 Gal/min) |
| Maximum free flow delivery (2) | 52 l/min (13.7 Gal/min) |
| Air inlet | 1/4" BSP (F) |
| Fluid inlet (short pump only) | 1" BSP (F) |
| Fluid outlet | 3/4" NPSM (F) |
| Wetted and seal materials | Aluminium / Steel / NBR / Acetal / Polyurethane |
| Noise level (3) | 80 dB |
- Air consumption with 6 bar air inlet pressure and 150 cycles per minute.
- Maximum free delivery at 7 bar.
- Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.

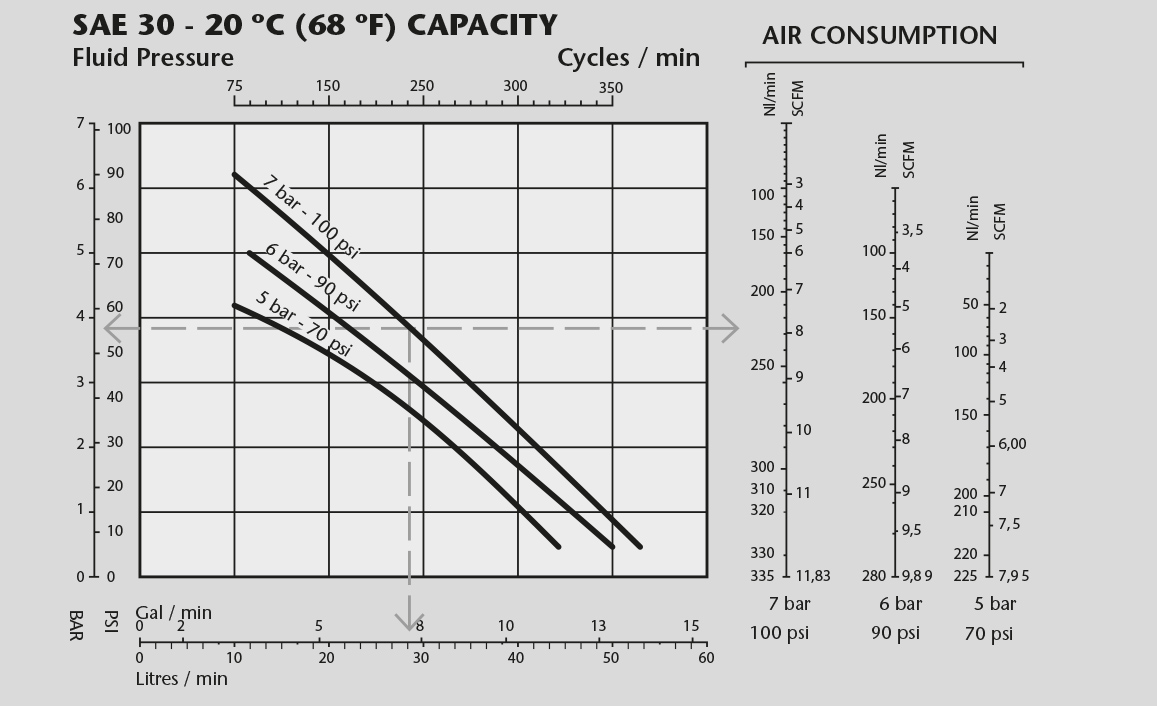

Technical Graphs
