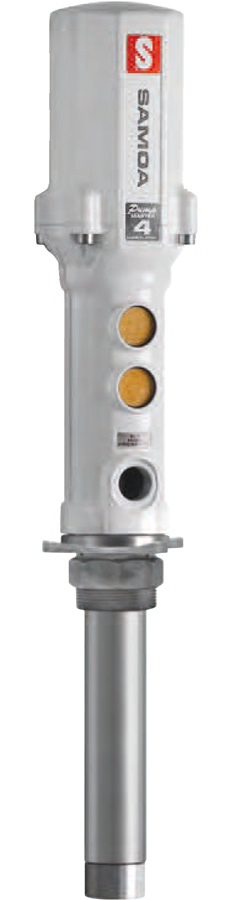

Double action air operated medium pressure pumps for dispensing lubricants in medium to large size installations, that include multiple outlets with simultaneous operation. Pumps include height adjustable 2" BSP (M) bung adaptor for drum and tank bung mounting. Built in port for optional pressure relief valve (PN 609 007).
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Transmission fluid.
- Hydraulic oil.
- Transmission fluid.
MARKETS SERVED
- Auto and truck dealers.
- Fleet service facilities.
- Mining and construction.
- Lube trucks.
- Marine.
- Railroad and mass transit
- In-plant.
Available Models & Accessories

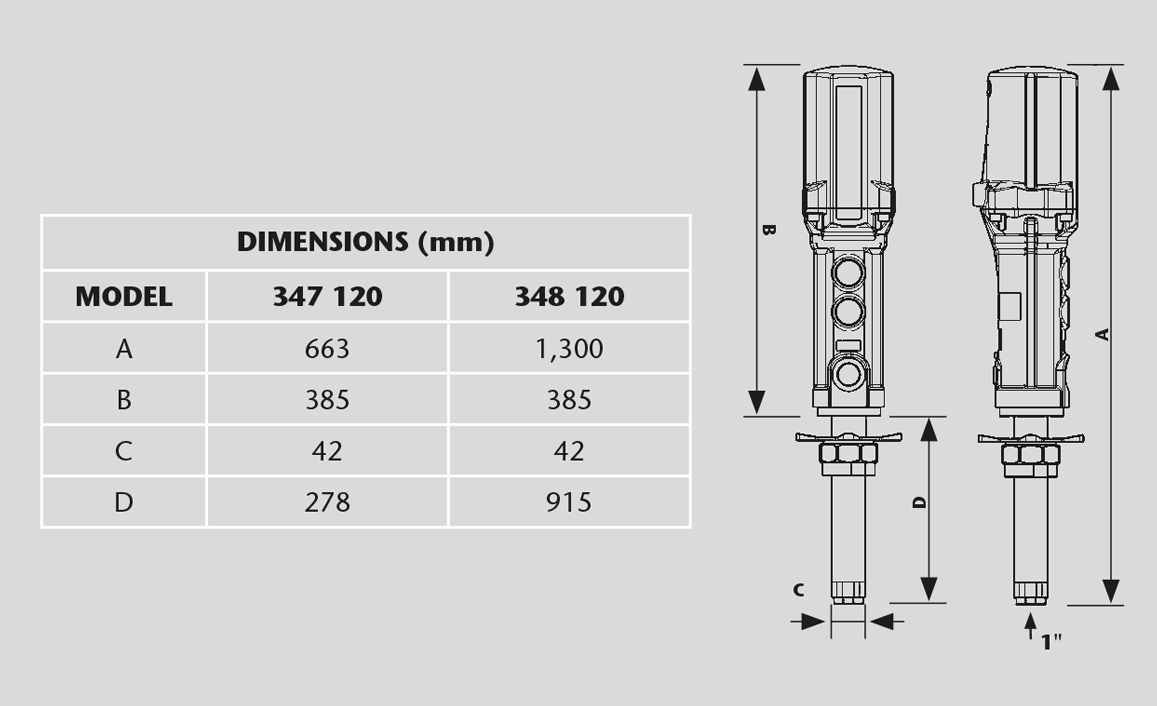

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 347 120 | Universal stub pump | 278 mm | 663 mm | 5.6 kg |
| 348 120 | 205 l (55 gal) drum bung mounted |
915 mm | 1,300 mm | 7.4 kg |
Technical Data
| Pump pressure ratio | 5:1 |
| Air pressure operating range | 1.5 - 10 bar (20 to 140 psi) |
| Air consumption (1) | 400 NL/min (14 cfm) |
| Maximum fluid outlet pressure | 50 bar (700 psi) |
| Air motor diameter | 88 mm (3.5") |
| Air motor effective diameter | 60 mm (2.4") |
| Air motor stroke | 100 mm (4") |
| Delivery at 85 cycles/min. | 10 l/min (2.7 US gal/min) |
| Maximum free flow delivery (2) | 25 l/min (6.6 Gal/min) |
| Air inlet | 3/8" BSP (F) |
| Fluid inlet (short pump only) | 1" BSP (F) |
| Fluid outlet | 3/4" NPSM (F) |
| Wetted and seal materials | Aluminium / Steel / Polyurethane / NBR / PTFE |
| Noise level (3) | 95 dB |
- Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
- Maximum free delivery at 7 bar.
- Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.

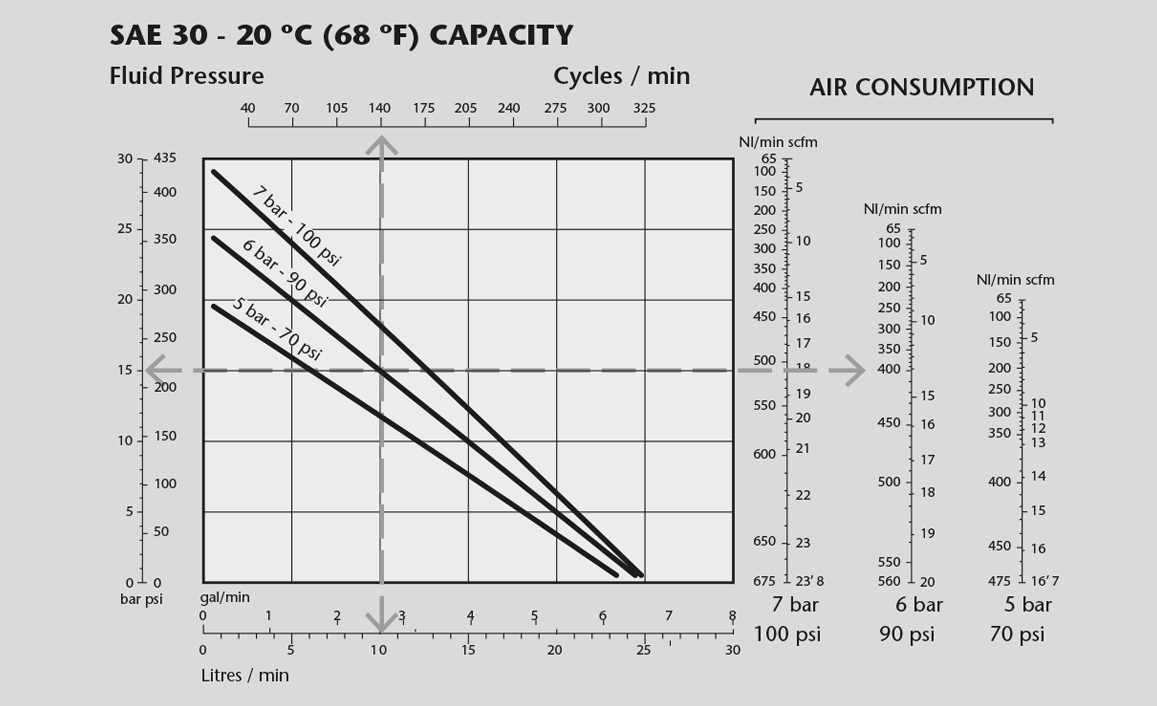

Technical Graphs
