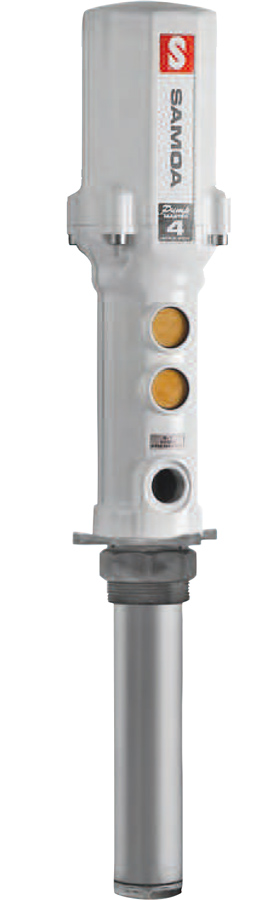

Double acting air operated medium pressure high volume pumps for dispensing lubricants in medium size installations. Pumps include height adjustable 2" BSP (M) bung adaptor for drum and tank bung mounting. Built in port for optional pressure relief valve (PN 609 007). MODELS
FLUIDS HANDLED
- Synthetic and mineral based lubricants.
- Transmission fluid.
- Hydraulic oil.
- Transmission fluid.
MARKETS SERVED
- Vehicle maintenance centres and auto dealers.
- Fleet service.
- Fast lube centres.
- Lube trucks.
- Mining and construction.
- In-plant.

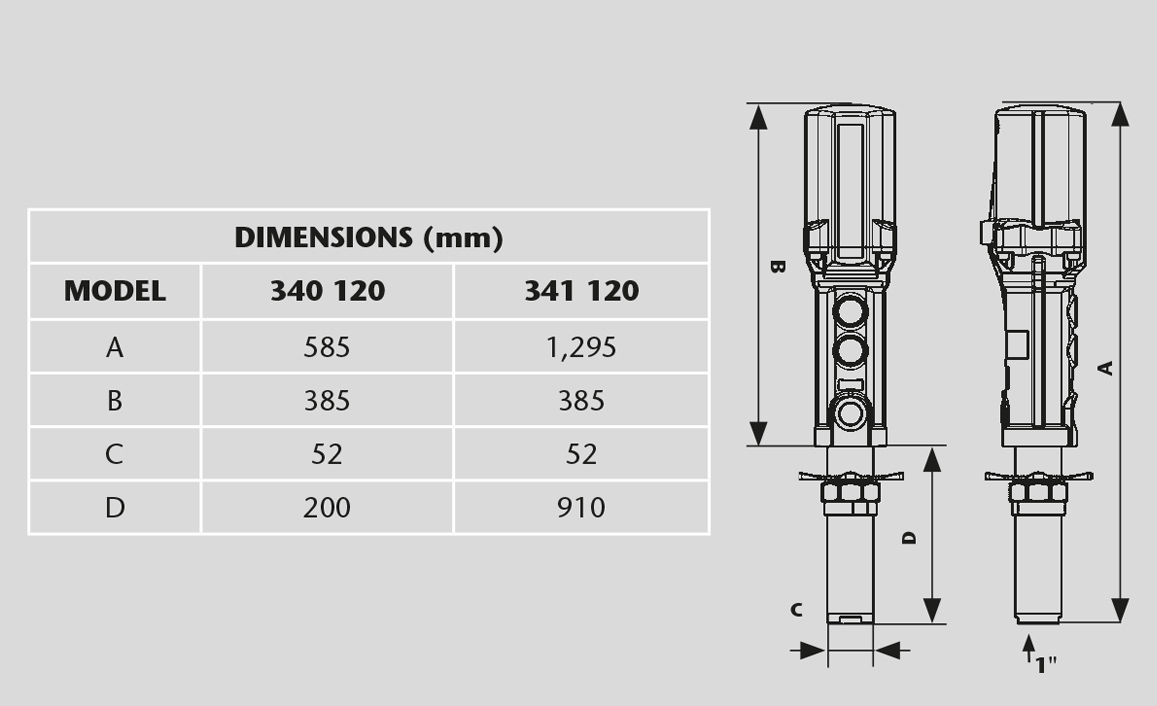

Available Models & Accessories
| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 340 120 | Universal stub pump | 200 mm | 585mm | 5.7 kg |
| 341 120 | 205 l (55 gal) drum bung mounted |
910mm | 1295 mm | 7.7 kg |
Technical Data
| Pump pressure ratio | 3:1 |
| Air pressure operating range | 1.5 - 10 bar (20 to 140 psi) |
| Air consumption (1) | 285 NL/min (10 cfm) |
| Maximum fluid outlet pressure | 30 bar (420 psi) |
| Air motor diameter | 88 mm (3.5") |
| Air motor effective diameter | 60 mm (2.4") |
| Air motor stroke | 100 mm (4") |
| Delivery at 85 cycles/min. | 10 l/min (2.7 US gal/min) |
| Maximum free flow delivery (2) | 42 l/min (11.1 US gal/min) |
| Air inlet | 3/8" BSP (F) |
| Fluid inlet (short pump only) | 1" BSP (F) |
| Fluid outlet | 3/4" NPSM (F) |
| Wetted and seal materials | Aluminium / Steel / Polyurethane / NBR / PTFE |
| Noise level (3) | 93 dB |
- Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
- Maximum free delivery at 7 bar.
- Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.

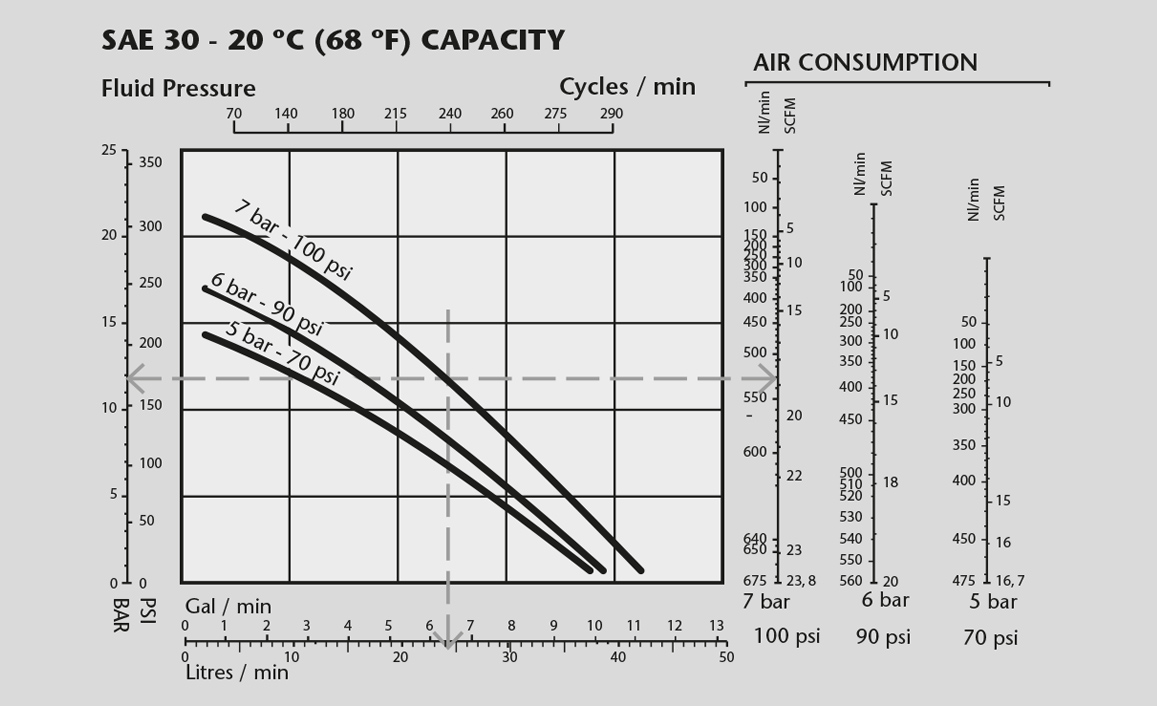

Technical Graphs
