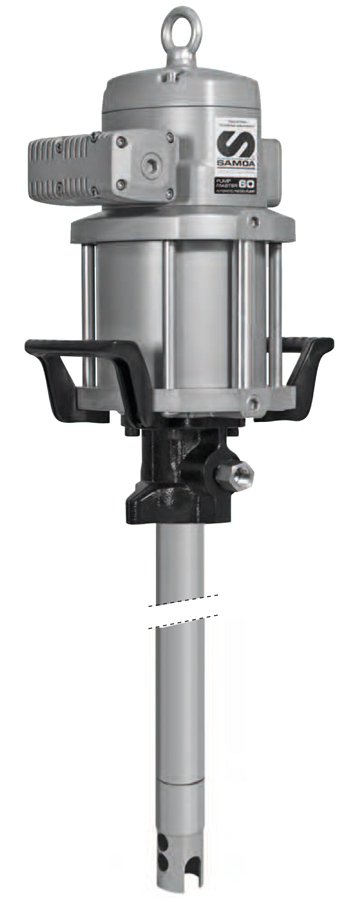

Very high pressure and high volume delivery double acting pump for use in applications that require extra pressure and volume output and where cold temperatures or low air pressure could limit pump performance.Pumps can be used with grease up to NLGI-2 viscosity. These pumps can be used in large distribution systems that include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg -120 lb and 185 kg - 400 lb open drum and for side mount on grease totes.
FLUIDS HANDLED
- Grease up to NLGI-2.
MARKETS SERVED
- Mining and construction.
- In-plant grease transfer.
- Rail road and mass transit.
- Lube trucks.
- Fleets.
Available Models & Accessories

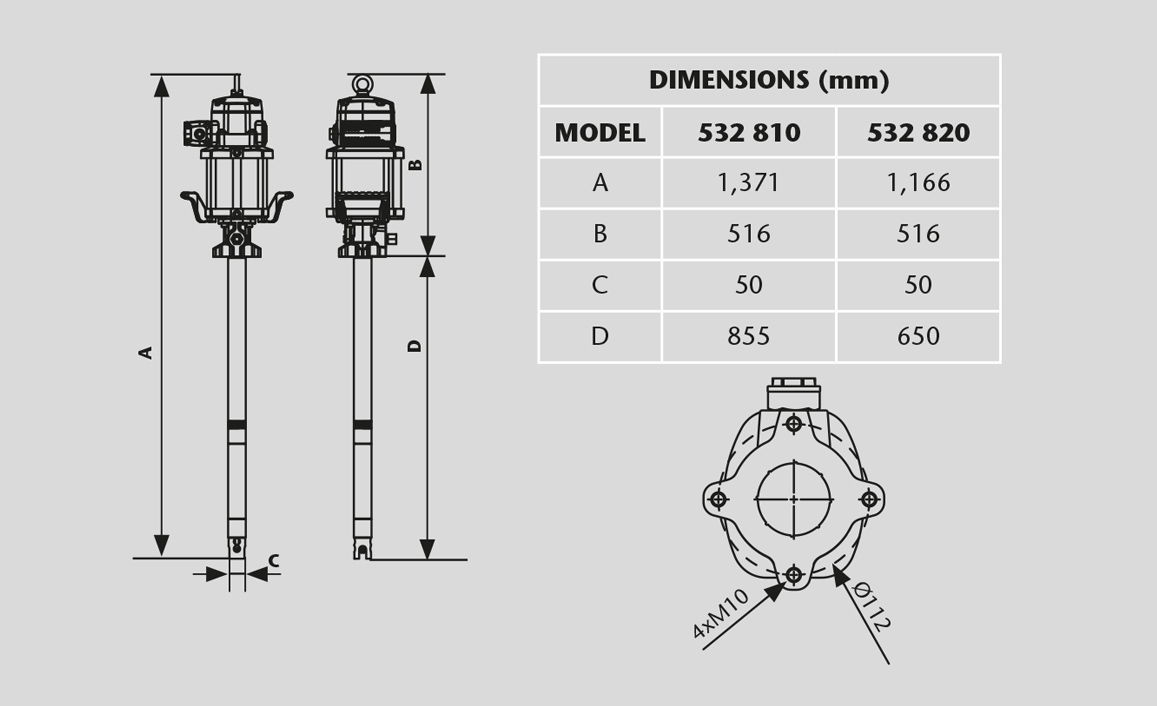

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 532 810 | 185 kg (400 lb) drum | 855 mm | 1,371 mm | 27 kg |
| 532 820 | 50 kg (120 lb) drum | 650 mm | 1,166 mm | 24 kg |
Technical Data
| Pump pressure ratio | 80:1 |
| Continuous duty flow rate | 2.5 kg/min (5.5 lb/min) |
| Maximum free flow | 8 kg/min (17.6 lb/min) |
| Air pressure operating range | 1.5 - 7 bar (20 - 100 psi) |
| Maximum outlet pressure | 560 bar (8,000 psi) |
| Air motor effective diameter | 150 mm (6") |
| Air motor stroke | 100 mm (4") |
| Air consumption (1) | 1,000 Nl/min (35 cfm) |
| Air inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted and seal materials | Cast Iron / Steel / Hard chromed steel / UHMW PE / NBR / PTFE |
| Noise level (2) | 80 dB |
- Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 ºC (68 ºF) and 60 cpm.
- Noise level measured at 1 m (3’) from the pump, 7 bar (100 psi) air pressure and free delivery.

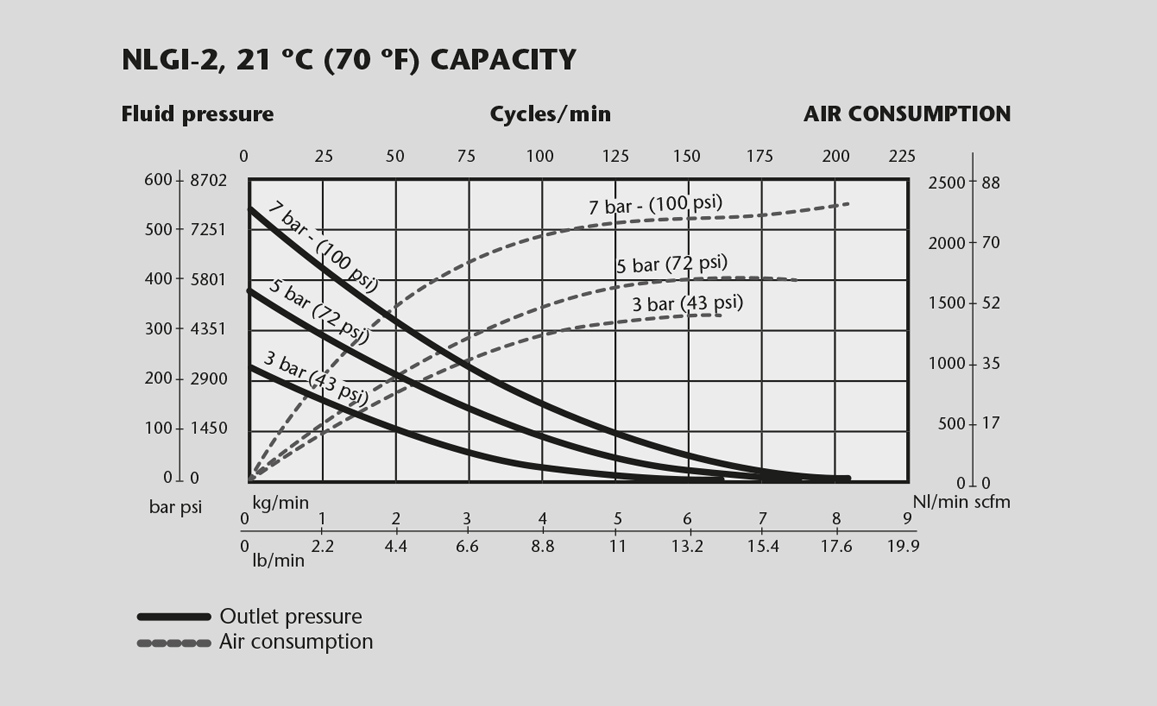

Technical Graphs
