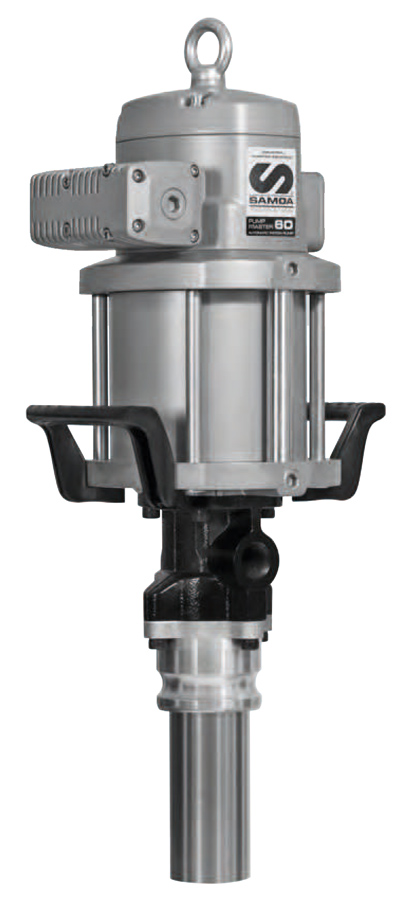

Moderate pressure, very high volume double acting grease pump for use in transfer applications.These pumps can be used with all type of grease up to NLGI-2.
Pumps are available for horizontal mounting on grease totes and grease bags and they include an adaptor to fit a 3" Cam-Lock coupler. They can be used with 185 kg - 400 lb drums when mounted to air pneumatic inductor.
FLUIDS HANDLED
- Grease up to NLGI-2.
- High viscosity oil.
MARKETS SERVED
- Mining and construction.
- In-plant grease transfer.
- Rail road and mass transit.
Available Models & Accessories

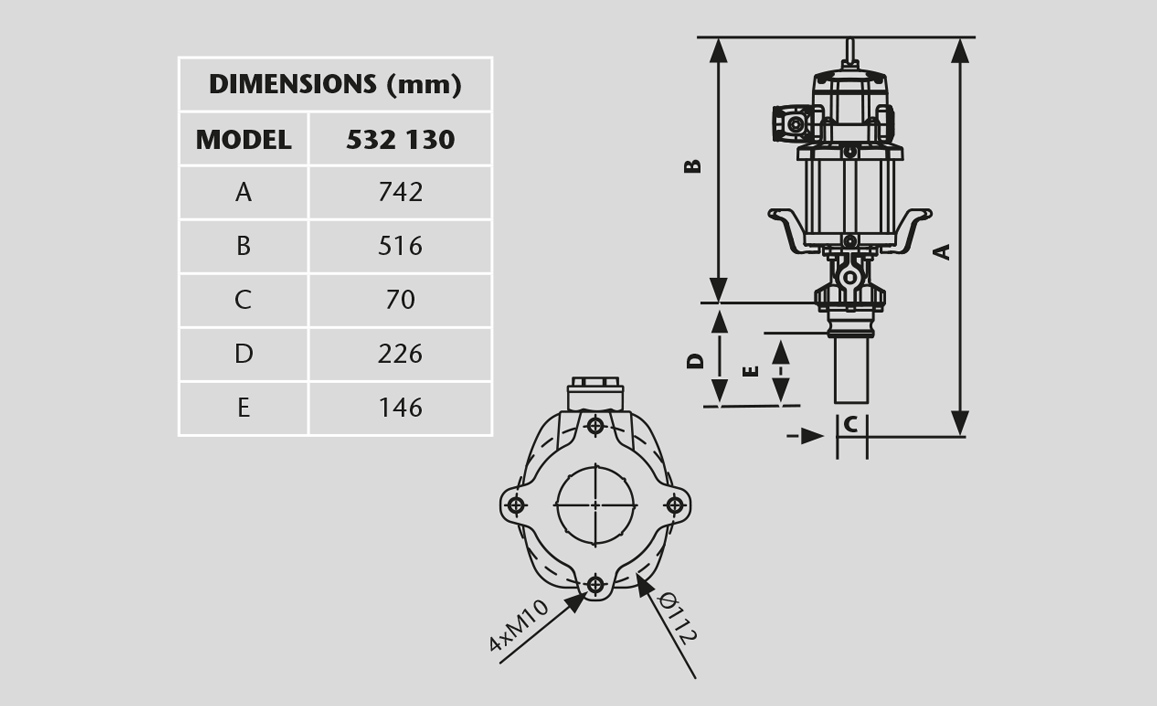

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 532 130* | Bulk tote | 226 mm | 742 mm | 19 kg |
* Includes adaptor 753 110 to fit a 3" cam-lock connector for use in totes and grease bags.
Technical Data
| Pump pressure ratio | 12:1 |
| Continuous duty flow rate | 15 kg/min (33 lb/min) |
| Maximum free flow | 40 kg/min (88 lb/min) |
| Air pressure operating range | 1.5 - 7 bar (20 - 100 psi) |
| Maximum outlet pressure | 84 bar (1,200 psi) |
| Air motor effective diameter | 150 mm (6") |
| Air motor stroke | 100 mm (4") |
| Air consumption (1) | 1,100 Nl/min (39 cfm) |
| Air inlet | 1/2" BSP (F) |
| Fluid outlet | 1" BSP (F) |
| Wetted and seal materials | Cast Iron / Steel / Hard chromed steel / UHMWPE / NBR / PTFE / Polyurethane |
| Noise level (2) | 80 dB |
- Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 ºC (68 ºF) and 60 cpm.
- Noise level measured at 1 m (3’) from the pump, 7 bar (100 psi) air pressure and free delivery.

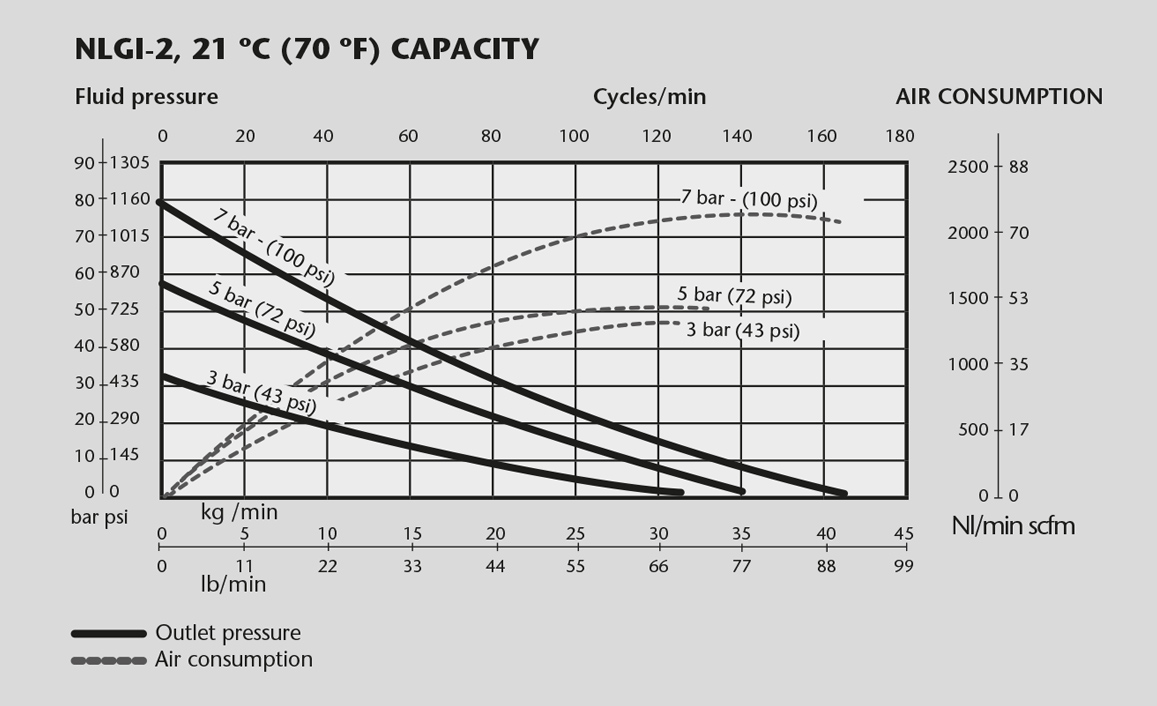

Technical Graphs
