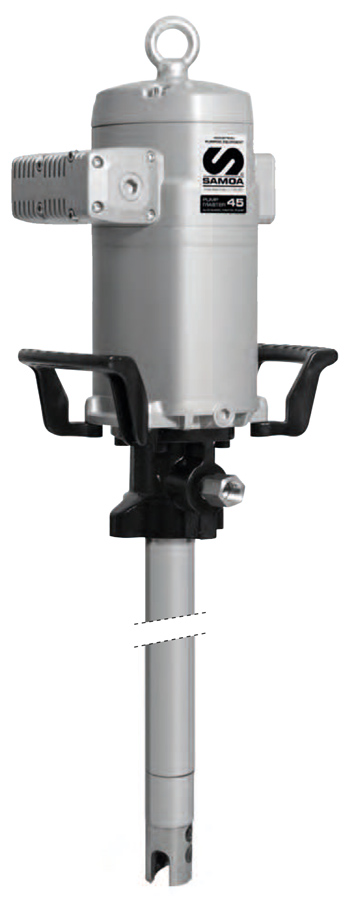

High pressure double acting pump for use in applications that require extra pressure output or when cold temperatures a low air pressure could limit pump performance. Pumps can be used with grease up to NLGI-2 viscosity. These pumps can be used in large distribution systems that include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg - 120 lb and 185 kg - 400 lb open drum and for horizontal and side mount on grease totes and bags.
FLUIDS HANDLED
- Grease up to NLGI-2.
MARKETS SERVED
- Heavy-Duty service shops.
- Fleets.
- Lube trucks.
- Mining and construction.
- Rail road and mass transit.
- In-plant.
- Marine.
Available Models & Accessories

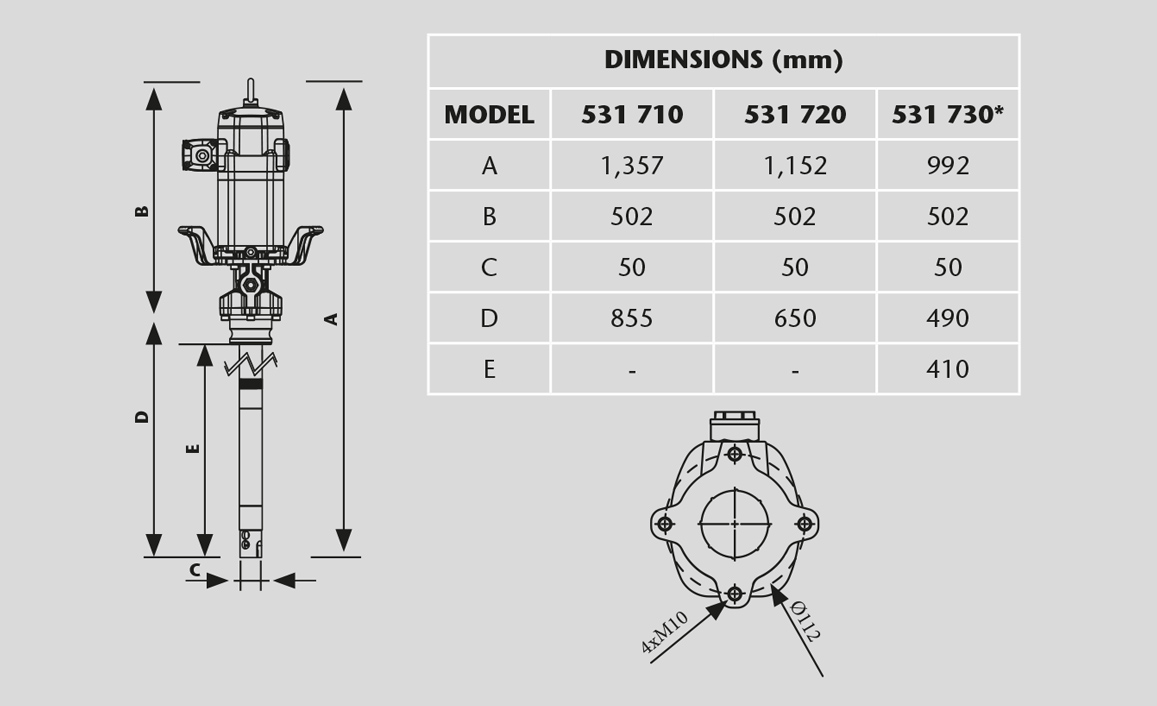

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 531 710 | 185 kg (400 lb) drum | 855 mm | 1,357 mm | 25 kg |
| 531 720 | 50 kg (120 lb) drum | 650 mm | 1,152 mm | 22 kg |
| 531 730* | Bulk tote | 490 mm | 992 mm | 21 kg |
* Includes adaptor 753 110 to fit a 3" cam-lock connector for use in totes and grease bags.
Technical Data
| Pump pressure ratio | 70:1 |
| Continuous duty flow rate | 6 kg/min (13.2 lb/min) |
| Maximum free flow | 7.5 kg/min (16.5 lb/min) |
| Air pressure operating range | 1.5 - 7 bar (20 - 100 psi) |
| Maximum outlet pressure | 490 bar (7,000 psi) |
| Air motor effective diameter | 115 mm (4.5") |
| Air motor stroke | 100 mm (4") |
| Air consumption (1) | 925 Nl/min (32.6 cfm) |
| Air inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Wetted and seal materials | Cast Iron / Steel / Hard chromed steel / UHMW PE / NBR / PTFE |
| Noise level (2) | 80 dB |
- Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 ºC (68 ºF) and 80 cpm.
- Noise level measured at 1 m (3’) from the pump, 7 bar (100 psi) air pressure and free delivery.

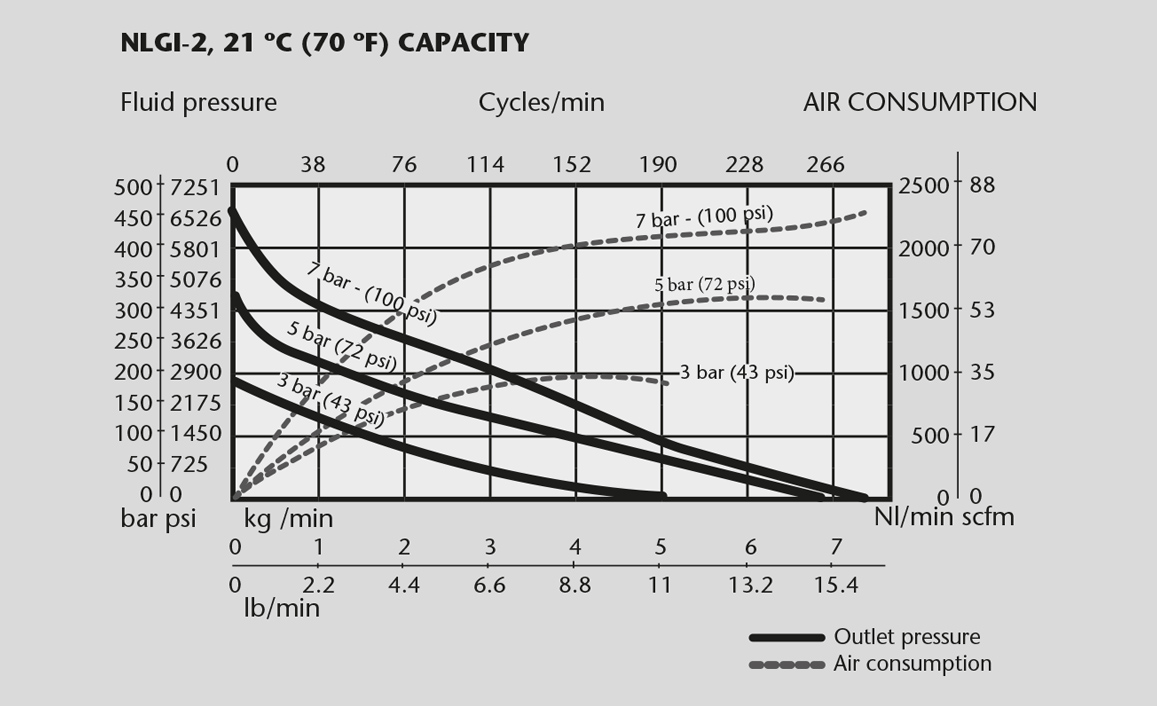

Technical Graphs
