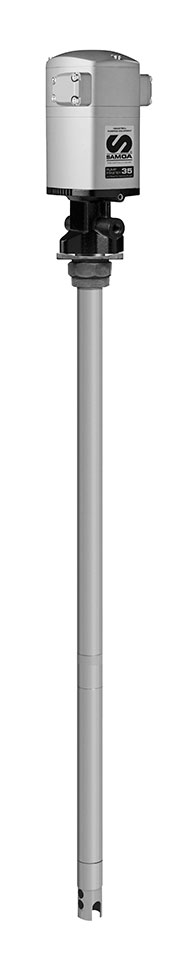

Double acting pumps with high pressure and high volume delivery for use in lubrication systems. Pumps can be used with grease up to NLGI-2 consistency. These pumps can be used in medium length systems that include multiple outlets.
Pumps are available for cover mount to 18 kg (35 lb), 50 kg (120 lb) and 185 kg (400 lb) open drums.
FLUIDS HANDLED
- Grease up to NLGI-2.
MARKETS SERVED
- Heavy-Duty service shops.
- Fleet service.
- Lube trucks.
- Mining and construction.
- Railroad and mass transit
- In-plant.
Available Models & Accessories

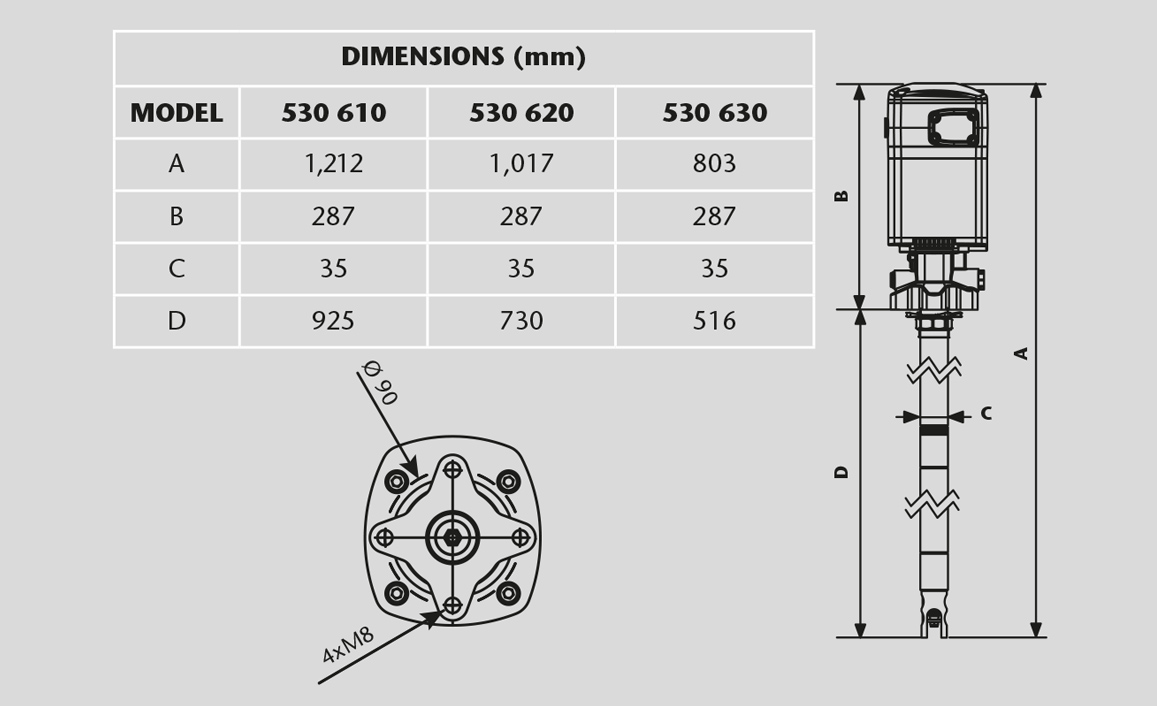

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 530 610 | 185 kg (400 lb) drum | 925 mm | 1,212 mm | 11 kg |
| 530 620 | 50 kg (120 lb) drum | 730 mm | 1,017 mm | 10 kg |
| 530 630 | 12.5 - 20 kg (40 lb) pails | 516 mm | 803 mm | 9 kg |
Technical Data
| Pump pressure ratio | 60:1 |
| Continuous duty flow rate (1) | 900 g/min (2 lb/min) |
| Maximum free flow | 2 kg/min (4.4 lb/min) |
| Air pressure operating range | 2 to 10 bar (20 to 145 psi) |
| Maximum outlet pressure | 600 bar (8,700 psi) |
| Air motor effective diameter | 80 mm (3.15") |
| Air motor stroke | 80 mm (3.15") |
| Air consumption (2) | 450 Nl/min (15.9 scfm) |
| Air inlet | 3/8" BSP (F) |
| Fluid outlet | 3/8" BSP (F) |
| Wetted and seal materials | Cast Iron / Hard chromed steel / Steel / UHMWPE / NBR / PTFE / Viton |
| Noise level (3) | 80 dB |
- Delivery at 80 cycles per minute.
- Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 ºC (68 ºF) and 80 cpm.
- Noise level measured at 1 m (3’) from the pump, 7 bar (100 psi) air pressure and free delivery.

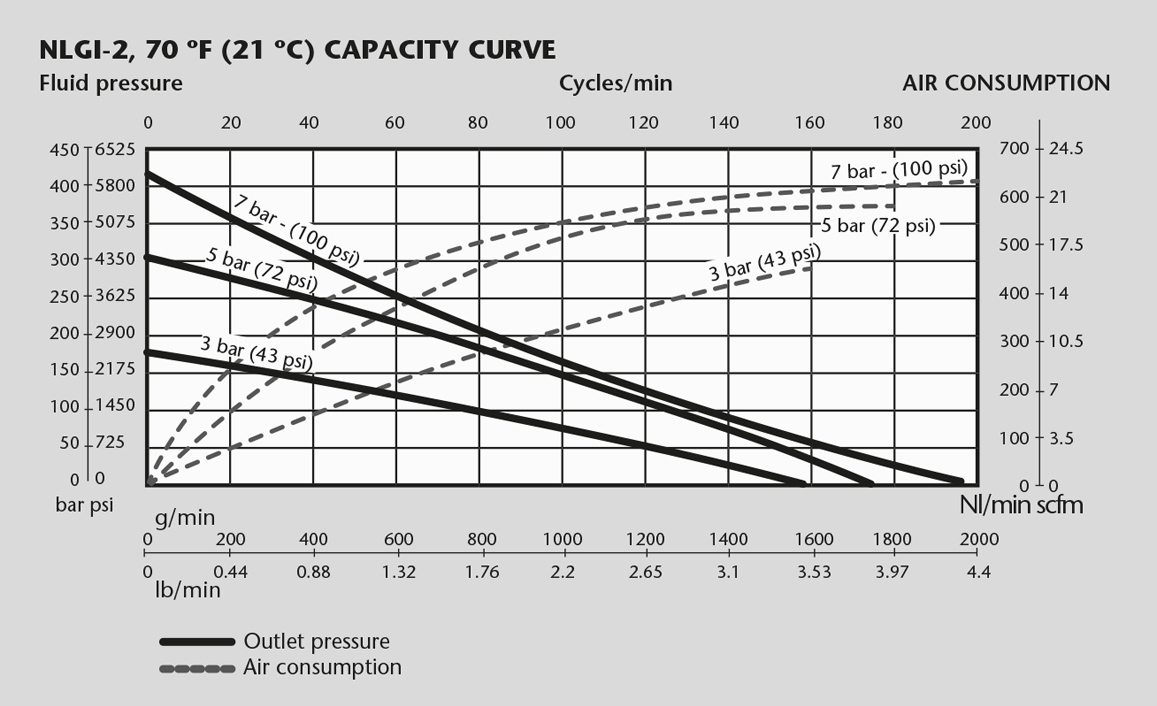

Technical Graphs
